Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
ColourGrey
Depth57.8mm
Operating temperature-40 - 130°C
Inflammability class of insulation material according to with UL94V0
Closing plate requiredYes
Rated voltage500V
Width6.2mm
Height47.5mm
Type of electrical connection 2Screw connection
Mounting methodDIN rail (top hat rail) 35 mm
Type of electrical connection 1Screw connection
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 4mm²
Number of clamp positions per level3
Connectable conductor cross section multi-wired0.14 - 6mm²
Connectable conductor cross section solid-core0.14 - 6mm²
Internally connected stagesNo
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 6mm²
Number of levels1
Explosion-tested version 'Ex e'Yes
Rated current In32A
Material insulation bodyThermoplastic
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

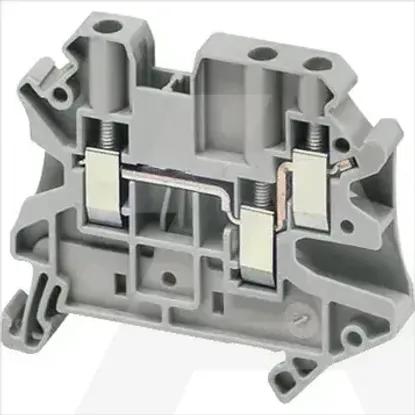

NSYTRV43 | Stez. Vijcana 4mm2 1P 1x2 Siva
