Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Mounting methodDIN rail (top hat rail) 35 mm
Depth57.8mm
Number of levels1
Number of clamp positions per level3
Internally connected stagesNo
Type of electrical connection 2Screw connection
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 6mm²
Type of electrical connection 1Screw connection
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 4mm²
Explosion-tested version 'Ex e'Yes
Connectable conductor cross section multi-wired0.14 - 6mm²
Width6.2mm
Height47.5mm
Material insulation bodyThermoplastic
Inflammability class of insulation material according to with UL94V0
Closing plate requiredYes
Operating temperature-40 - 130°C
ColourBlue
Rated voltage500V
Connectable conductor cross section solid-core0.14 - 6mm²
Rated current In32A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

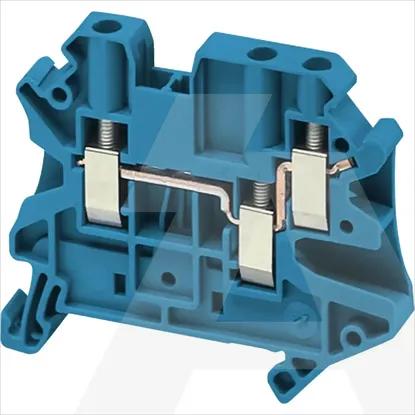

NSYTRV43BL | Stez. Vijcana 4mm2 1P 1x2 Plava
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Terminal blocks
- Feed-through terminal block
- 50 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Mounting method
DIN rail (top hat rail) 35 mm
Depth
57.8mm
Number of levels
1
Number of clamp positions per level
3
Internally connected stages
Type of electrical connection 2
Screw connection
Connectable conductor cross section fine-strand without cable end sleeve
0.14 .. 6mm²
Type of electrical connection 1
Screw connection
Connectable conductor cross section fine-strand with cable end sleeve
0.2 .. 4mm²
Explosion-tested version 'Ex e'
Connectable conductor cross section multi-wired
0.14 .. 6mm²
Width
6.2mm
Height
47.5mm
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V0
Closing plate required
Operating temperature
-40 .. 130°C
Colour
Blue
Rated voltage
500V
Connectable conductor cross section solid-core
0.14 .. 6mm²
Rated current In
32A
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
