Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Number of clamp positions per level4
Inflammability class of insulation material according to with UL94V0
ColourGrey
Depth65.4mm
Internally connected stagesNo
Closing plate requiredYes
Width6.2mm
Type of electrical connection 2Screw connection
Operating temperature-40 - 130°C
Type of electrical connection 1Screw connection
Rated voltage500V
Mounting methodDIN rail (top hat rail) 35 mm
Number of levels1
Height47.5mm
Connectable conductor cross section solid-core0.14 - 6mm²
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 4mm²
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 6mm²
Connectable conductor cross section multi-wired0.14 - 6mm²
Rated current In32A
Explosion-tested version 'Ex e'Yes
Material insulation bodyThermoplastic
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

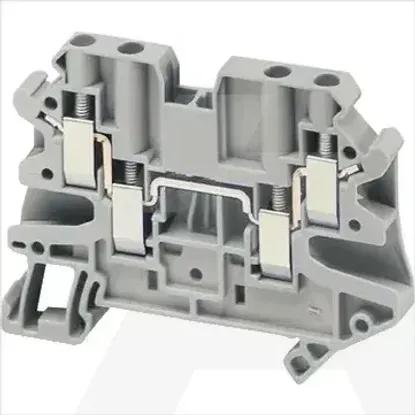

NSYTRV44 | Screw Terminal, Feed Through, 4 Points,
