Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Width6.2mm
Mounting methodDIN rail (top hat rail) 35 mm
Height47.5mm
Type of electrical connection 1Screw connection
Operating temperature-40 - 130°C
Closing plate requiredYes
Depth65.4mm
Inflammability class of insulation material according to with UL94V0
Number of clamp positions per level4
Number of levels1
Type of electrical connection 2Screw connection
Internally connected stagesNo
Explosion-tested version 'Ex e'Yes
Material insulation bodyThermoplastic
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 4mm²
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 6mm²
Connectable conductor cross section multi-wired0.14 - 6mm²
ColourBlue
Rated voltage500V
Connectable conductor cross section solid-core0.14 - 6mm²
Rated current In32A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

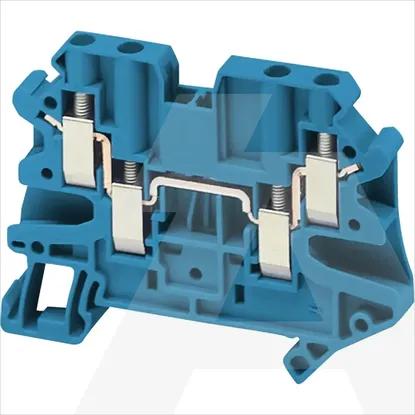

NSYTRV44BL | Stez. Vijcana 4mm2 1P 2x2 Plava
