Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Mounting methodDIN rail (top hat rail) 35 mm
Type of electrical connection 2Screw connection
Number of clamp positions per level2
Height65mm
Operating temperature-40 - 130°C
Rated voltage800V
Rated current In30A
Width6.2mm
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 4mm²
Inflammability class of insulation material according to with UL94V0
Material insulation bodyThermoplastic
Connectable conductor cross section solid-core0.14 - 6mm²
Depth69.9mm
Type of electrical connection 1Screw connection
Internally connected stagesNo
Connectable conductor cross section multi-wired0.14 - 6mm²
Closing plate requiredYes
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 6mm²
Number of levels2
ColourGrey
Explosion-tested version 'Ex e'Yes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

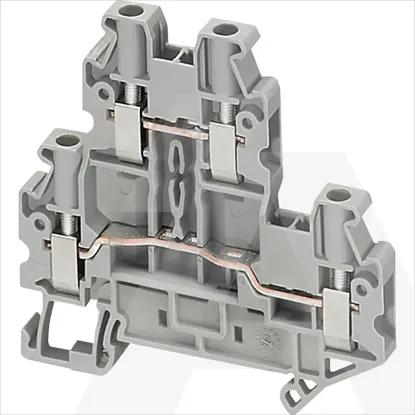

NSYTRV44D | Stez. Vijcana 4mm2 2P 1x1 Siva
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Terminal blocks
- Feed-through terminal block
- 50 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Mounting method
DIN rail (top hat rail) 35 mm
Type of electrical connection 2
Screw connection
Number of clamp positions per level
2
Height
65mm
Operating temperature
-40 .. 130°C
Rated voltage
800V
Rated current In
30A
Width
6.2mm
Connectable conductor cross section fine-strand with cable end sleeve
0.2 .. 4mm²
Inflammability class of insulation material according to with UL94
V0
Material insulation body
Thermoplastic
Connectable conductor cross section solid-core
0.14 .. 6mm²
Depth
69.9mm
Type of electrical connection 1
Screw connection
Internally connected stages
Connectable conductor cross section multi-wired
0.14 .. 6mm²
Closing plate required
Connectable conductor cross section fine-strand without cable end sleeve
0.14 .. 6mm²
Number of levels
2
Colour
Grey
Explosion-tested version 'Ex e'
