Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
ColourBlue
Mounting methodDIN rail (top hat rail) 35 mm
Width6.2mm
Closing plate requiredYes
Depth69.9mm
Rated voltage800V
Operating temperature-40 - 130°C
Type of electrical connection 1Screw connection
Inflammability class of insulation material according to with UL94V0
Height65mm
Type of electrical connection 2Screw connection
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 4mm²
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 6mm²
Number of levels2
Number of clamp positions per level2
Connectable conductor cross section multi-wired0.14 - 6mm²
Internally connected stagesNo
Connectable conductor cross section solid-core0.14 - 6mm²
Material insulation bodyThermoplastic
Explosion-tested version 'Ex e'Yes
Rated current In30A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

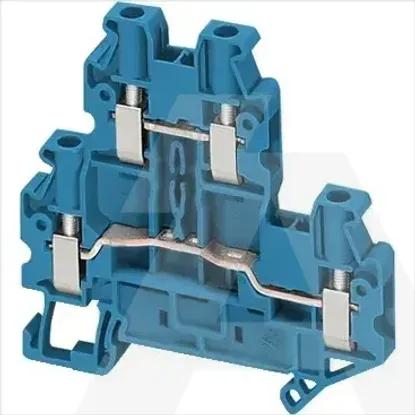

NSYTRV44DBL | Stez. Vijcana 4mm2 2P 1x1 Plava
