Details
- •Terminal blocks
- •Feed-through terminal block
- •10 KOM
- •SCHNEIDER
Technical specifications
ColourBlue
Height83.5mm
Mounting methodDIN rail (top hat rail) 35 mm
Width20mm
Number of levels1
Connectable conductor cross section fine-strand with cable end sleeve25 - 50mm²
Type of electrical connection 1Screw connection
Inflammability class of insulation material according to with UL94V0
Rated current In150A
Depth70.5mm
Internally connected stagesNo
Material insulation bodyThermoplastic
Number of clamp positions per level2
Closing plate requiredNo
Connectable conductor cross section fine-strand without cable end sleeve25 - 70mm²
Explosion-tested version 'Ex e'Yes
Type of electrical connection 2Screw connection
Operating temperature-40 - 130°C
Connectable conductor cross section multi-wired25 - 70mm²
Connectable conductor cross section solid-core16 - 70mm²
Rated voltage1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

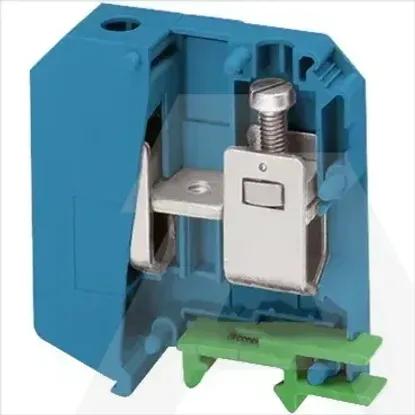

NSYTRV502BL | Stez. Vijcana 50mm2 1P 1x1 Plava
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Terminal blocks
- Feed-through terminal block
- 10 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Colour
Blue
Height
83.5mm
Mounting method
DIN rail (top hat rail) 35 mm
Width
20mm
Number of levels
1
Connectable conductor cross section fine-strand with cable end sleeve
25 .. 50mm²
Type of electrical connection 1
Screw connection
Inflammability class of insulation material according to with UL94
V0
Rated current In
150A
Depth
70.5mm
Internally connected stages
Material insulation body
Thermoplastic
Number of clamp positions per level
2
Closing plate required
Connectable conductor cross section fine-strand without cable end sleeve
25 .. 70mm²
Explosion-tested version 'Ex e'
Type of electrical connection 2
Screw connection
Operating temperature
-40 .. 130°C
Connectable conductor cross section multi-wired
25 .. 70mm²
Connectable conductor cross section solid-core
16 .. 70mm²
Rated voltage
1000V
