Details

  • •
  • •Terminal blocks

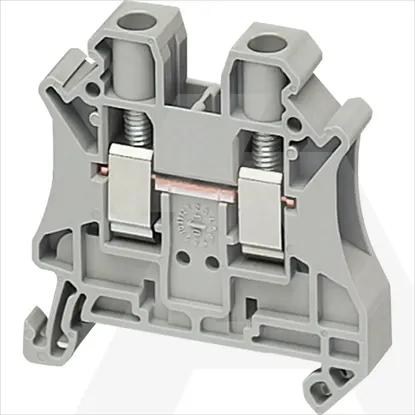

  • •Feed-through terminal block
  • •Minimum order quantity: 50 pcs
  • •SCHNEIDER

Technical specifications

Width8.2mm
Mounting methodDIN rail (top hat rail) 35 mm
Height47.5mm
Depth47.7mm
Closing plate requiredYes
Number of clamp positions per level2
Inflammability class of insulation material according to with UL94V0
Internally connected stagesNo
Connectable conductor cross section multi-wired0.2 - 10mm²
Operating temperature-40 - 130°C
Explosion-tested version 'Ex e'Yes
Material insulation bodyThermoplastic
Number of levels1
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 6mm²
Connectable conductor cross section fine-strand without cable end sleeve0.2 - 10mm²
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
ColourGrey
Rated voltage1000V
Connectable conductor cross section solid-core0.2 - 10mm²
Rated current In41A
