Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Mounting methodDIN rail (top hat rail) 35 mm
Width8.2mm
Rated voltage1000V
ColourBlue
Height47.5mm
Operating temperature-40 - 130°C
Depth47.7mm
Type of electrical connection 1Screw connection
Connectable conductor cross section fine-strand without cable end sleeve0.2 - 10mm²
Type of electrical connection 2Screw connection
Inflammability class of insulation material according to with UL94V0
Number of clamp positions per level2
Internally connected stagesNo
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 6mm²
Closing plate requiredYes
Number of levels1
Connectable conductor cross section solid-core0.2 - 10mm²
Explosion-tested version 'Ex e'Yes
Material insulation bodyThermoplastic
Connectable conductor cross section multi-wired0.2 - 10mm²
Rated current In41A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

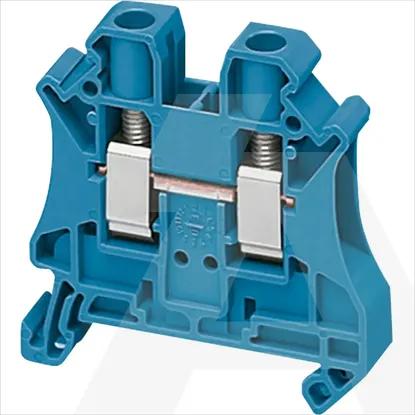

NSYTRV62BL | Screw Terminal, Feed Through, 2 Points,
