Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Mounting methodDIN rail (top hat rail) 35 mm
Type of electrical connection 2Screw connection
Inflammability class of insulation material according to with UL94V0
Type of electrical connection 1Screw connection
Depth100.8mm
Height49.6mm
Operating temperature-40 - 130°C
Number of clamp positions per level2
Width8.2mm
Internally connected stagesNo
Number of levels1
Closing plate requiredYes
Connectable conductor cross section fine-strand without cable end sleeve0.2 - 10mm²
Connectable conductor cross section multi-wired0.2 - 10mm²
Explosion-tested version 'Ex e'No
Material insulation bodyThermoplastic
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 6mm²
ColourGrey
Rated voltage500V
Connectable conductor cross section solid-core0.2 - 10mm²
Rated current In30A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

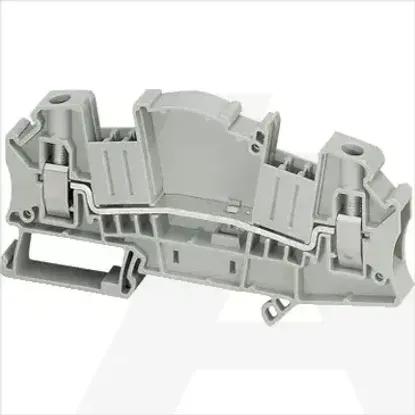

NSYTRV62TT | Stez. Vijcana 6mm2 1P 1x1 Siva Mjer.
