Details
- •Terminal blocks
- •Feed-through terminal block
- •10 KOM
- •SCHNEIDER
Technical specifications
Operating temperature-40 - 130°C
Internally connected stagesNo
Depth70.5mm
Type of electrical connection 1Screw connection
Closing plate requiredNo
Number of clamp positions per level2
Height87.5mm
Mounting methodDIN rail (top hat rail) 35 mm
Type of electrical connection 2Screw connection
ColourGrey
Rated voltage1000V
Width20.3mm
Number of levels1
Material insulation bodyThermoplastic
Connectable conductor cross section solid-core16 - 95mm²
Connectable conductor cross section fine-strand without cable end sleeve25 - 70mm²
Connectable conductor cross section multi-wired25 - 70mm²
Connectable conductor cross section fine-strand with cable end sleeve25 - 70mm²
Suitable for conductor materialAluminium/copper
Explosion-tested version 'Ex e'Yes
Rated current In192A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

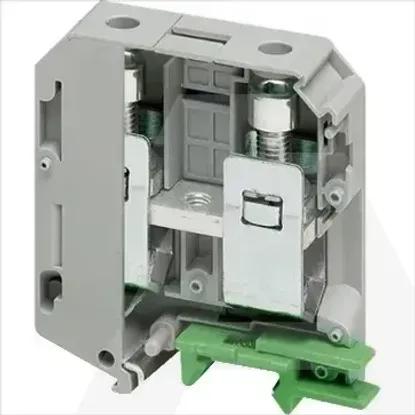

NSYTRV702 | Stez. Vijcana 70mm2 1P 1x1 Siva
