Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - analogue I/O module
- •1 KOM
- •SCHNEIDER
Technical specifications
Suitable for safety functionsNo
Depth70mm
Number of analogue outputs0
Number of analogue inputs4
Height18.4mm
Width128.3mm
Voltage type of supply voltageDC
Number of HW-interfaces RS-4220
Number of HW-interfaces industrial Ethernet0
Supporting protocol for LONNo
Number of HW-interfaces RS-4850
Number of HW-interfaces RS-2320
Number of HW-interfaces serial TTY0
Number of HW-interfaces parallel0
Supporting protocol for PROFIBUSNo
Number of HW-interfaces USB0
Number of HW-interfaces other0
Supporting protocol for ASINo
Supporting protocol for TCP/IPNo
Supporting protocol for INTERBUSNo
Supporting protocol for CANNo
Supporting protocol for DeviceNetNo
Supporting protocol for other bus systemsNo
Output, voltageNo
Input, resistance thermometerNo
Input, voltageNo
Output, currentNo
Input, resistorNo
Output signal configurableNo
Input, thermocoupleNo
Supporting protocol for KNXNo
Resolution of the analogue inputs15Bit
Supporting protocol for SUCONETNo
Input signal, configurableYes
Supporting protocol for Data-HighwayNo
Input, currentYes
Supporting protocol for ModbusNo
Front built-in possibleNo
Resolution of the analogue outputs-Bit
Supporting protocol for AS-Interface Safety at WorkNo
Performance level according to EN ISO 13849-1None
Appendant operation agent (Ex ia)No
Supporting protocol for INTERBUS-SafetyNo
Degree of protection (IP)IP20
Supporting protocol for SERCOSNo
Supporting protocol for Foundation FieldbusNo
Number of interfaces PROFINET0
Rack-assembly possibleYes
IO link masterNo
Rail mounting possibleYes
Fieldbus connection over separate bus coupler possibleYes
Type of electric connectionScrew connection
Supporting protocol for EtherNet/IPNo
Wall mounting/direct mountingNo
Explosion safety category for dustOther
Radio standard Wi-Fi 802.11No
Supporting protocol for DeviceNet SafetyNo
Appendant operation agent (Ex ib)No
Number of HW-interfaces Wireless0
System accessoryYes
Radio standard BluetoothNo
Explosion safety category for gasATEX gas-ex-protection, Cat. 3G
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET IONo
Supply voltage AC 50 Hz- - -V
Supply voltage AC 60 Hz- - -V
Supporting protocol for SafetyBUS pNo
Supply voltage DC24 - 24V
Analogue outputs configurableNo
Analogue inputs configurableYes
Radio standard GPRSNo
Radio standard UMTSNo
Radio standard GSMNo
SIL according to IEC 61508None
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

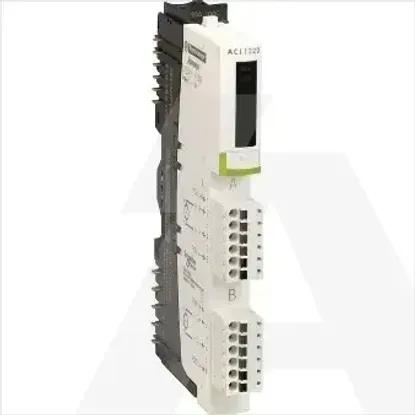

STBACI0320K | Analog C in 4CH,4-20MA KIT Conns,base
