Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - analogue I/O module
- •1 KOM
- •SCHNEIDER
Technical specifications
Height18.4mm
Width128.3mm
Voltage type of supply voltageDC
Suitable for safety functionsNo
Number of analogue outputs2
Number of analogue inputs0
Supporting protocol for LONNo
Number of HW-interfaces industrial Ethernet0
Depth70mm
Number of HW-interfaces RS-4220
Supporting protocol for TCP/IPNo
Number of HW-interfaces RS-4850
Number of HW-interfaces other0
Number of HW-interfaces serial TTY0
Number of HW-interfaces parallel0
Number of HW-interfaces RS-2320
Number of HW-interfaces USB0
Supporting protocol for CANNo
Supporting protocol for INTERBUSNo
Supporting protocol for PROFIBUSNo
Supporting protocol for ASINo
Supporting protocol for SUCONETNo
Supporting protocol for DeviceNetNo
Supporting protocol for ModbusNo
Supporting protocol for other bus systemsNo
Supporting protocol for Data-HighwayNo
Supporting protocol for KNXNo
Input, thermocoupleNo
Input, voltageNo
Input, currentNo
Input, resistance thermometerNo
Output, currentYes
Input signal, configurableNo
Input, resistorNo
Resolution of the analogue inputs10Bit
Fieldbus connection over separate bus coupler possibleYes
Explosion safety category for dustOther
Output, voltageNo
Resolution of the analogue outputs10Bit
Rail mounting possibleYes
Explosion safety category for gasATEX gas-ex-protection, Cat. 3G
Output signal configurableNo
Type of electric connectionScrew connection
System accessoryYes
Front built-in possibleNo
Supporting protocol for INTERBUS-SafetyNo
Appendant operation agent (Ex ib)No
Number of HW-interfaces Wireless0
Degree of protection (IP)IP20
Number of interfaces PROFINET0
Supporting protocol for SERCOSNo
Appendant operation agent (Ex ia)No
Rack-assembly possibleYes
Wall mounting/direct mountingNo
Supporting protocol for AS-Interface Safety at WorkNo
Performance level according to EN ISO 13849-1None
Radio standard Wi-Fi 802.11No
Supporting protocol for EtherNet/IPNo
Supporting protocol for Foundation FieldbusNo
Radio standard BluetoothNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for SafetyBUS pNo
Supply voltage DC24 - 24V
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFIsafeNo
Analogue outputs configurableYes
Supply voltage AC 60 Hz- - -V
Supply voltage AC 50 Hz- - -V
Analogue inputs configurableNo
Supporting protocol for PROFINET IONo
IO link masterNo
SIL according to IEC 61508None
Radio standard UMTSNo
Radio standard GSMNo
Radio standard GPRSNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

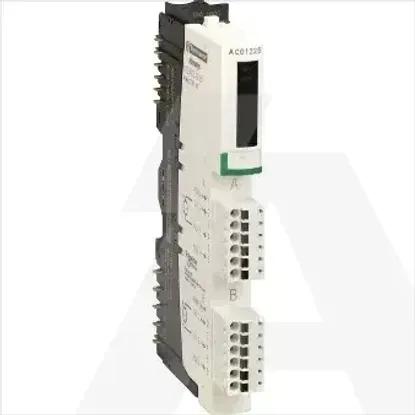

STBACO1225K | Analog C OUT 2CHBASIC4-20 KIT Conns,base
