Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - analogue I/O module
- •1 KOM
- •SCHNEIDER
Technical specifications
Height18.4mm
Width128.3mm
Number of HW-interfaces industrial Ethernet0
Supporting protocol for LONNo
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-2320
Voltage type of supply voltageDC
Suitable for safety functionsNo
Number of analogue inputs2
Number of analogue outputs0
Depth70mm
Supporting protocol for TCP/IPNo
Number of HW-interfaces serial TTY0
Supporting protocol for CANNo
Supporting protocol for SUCONETNo
Supporting protocol for INTERBUSNo
Number of HW-interfaces parallel0
Number of HW-interfaces RS-4850
Supporting protocol for DeviceNetNo
Supporting protocol for ASINo
Supporting protocol for ModbusNo
Supporting protocol for PROFIBUSNo
Supporting protocol for KNXNo
Supporting protocol for other bus systemsNo
Number of HW-interfaces other0
Input, currentNo
Supporting protocol for Data-HighwayNo
Output, currentNo
Input signal, configurableYes
Input, resistance thermometerYes
Input, thermocoupleYes
Input, resistorNo
Output, voltageNo
Number of HW-interfaces USB0
Input, voltageYes
Output signal configurableNo
Appendant operation agent (Ex ia)No
System accessoryYes
Type of electric connectionScrew connection
Front built-in possibleNo
Rail mounting possibleYes
Fieldbus connection over separate bus coupler possibleYes
Explosion safety category for gasOther
Number of interfaces PROFINET0
Appendant operation agent (Ex ib)No
Degree of protection (IP)IP20
Resolution of the analogue inputs15Bit
Supporting protocol for INTERBUS-SafetyNo
Number of HW-interfaces Wireless0
Supporting protocol for SERCOSNo
Explosion safety category for dustOther
Rack-assembly possibleYes
Supporting protocol for EtherNet/IPNo
Radio standard BluetoothNo
Supporting protocol for DeviceNet SafetyNo
Performance level according to EN ISO 13849-1None
Radio standard Wi-Fi 802.11No
Resolution of the analogue outputs-Bit
Supporting protocol for AS-Interface Safety at WorkNo
Wall mounting/direct mountingNo
IO link masterNo
Supporting protocol for Foundation FieldbusNo
Supply voltage AC 60 Hz- - -V
Supporting protocol for PROFINET IONo
Supporting protocol for SafetyBUS pNo
SIL according to IEC 61508None
Supporting protocol for PROFIsafeNo
Supply voltage AC 50 Hz- - -V
Radio standard GPRSNo
Analogue inputs configurableYes
Radio standard UMTSNo
Radio standard GSMNo
Analogue outputs configurableNo
Supporting protocol for PROFINET CBANo
Supply voltage DC24 - 24V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

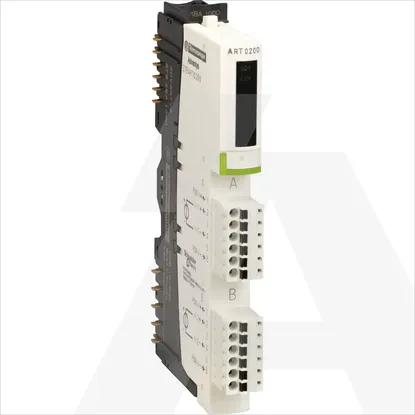

STBART0200K | Analog in 2CH Rtd/tc/mv KIT Conns,base
