Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - analogue I/O module
- •1 KOM
- •SCHNEIDER
Technical specifications
Height18.4mm
Width128.3mm
Depth70mm
Number of HW-interfaces RS-4220
Number of HW-interfaces USB0
Supporting protocol for LONNo
Suitable for safety functionsNo
Number of HW-interfaces RS-4850
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-2320
Number of HW-interfaces industrial Ethernet0
Supporting protocol for ModbusNo
Supporting protocol for SUCONETNo
Supporting protocol for DeviceNetNo
Supporting protocol for ASINo
Input, voltageNo
Input, resistance thermometerNo
Supporting protocol for PROFIBUSNo
Supporting protocol for Data-HighwayNo
Input, thermocoupleNo
Supporting protocol for KNXNo
Number of HW-interfaces other0
Input, resistorNo
Supporting protocol for TCP/IPNo
Input, currentYes
Supporting protocol for CANNo
Supporting protocol for INTERBUSNo
Input signal, configurableYes
Output, currentNo
Type of electric connectionScrew connection
Output, voltageNo
Output signal configurableNo
Number of HW-interfaces parallel0
Supporting protocol for other bus systemsNo
System accessoryYes
Explosion safety category for dustOther
Rack-assembly possibleYes
Supporting protocol for SERCOSNo
Explosion safety category for gasATEX gas-ex-protection, Cat. 3G
Supporting protocol for Foundation FieldbusNo
Degree of protection (IP)IP20
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for EtherNet/IPNo
Wall mounting/direct mountingNo
Performance level according to EN ISO 13849-1None
Number of HW-interfaces Wireless0
Supporting protocol for INTERBUS-SafetyNo
Rail mounting possibleYes
Radio standard Wi-Fi 802.11No
IO link masterNo
Fieldbus connection over separate bus coupler possibleYes
Front built-in possibleNo
Number of interfaces PROFINET0
Appendant operation agent (Ex ia)No
Radio standard BluetoothNo
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFINET IONo
Appendant operation agent (Ex ib)No
Supporting protocol for PROFIsafeNo
Supply voltage DC0 - 10V
SIL according to IEC 61508None
Supporting protocol for SafetyBUS pNo
Supply voltage AC 50 Hz- - -V
Analogue outputs configurableNo
Radio standard UMTSNo
Radio standard GSMNo
Radio standard GPRSNo
Analogue inputs configurableYes
Supply voltage AC 60 Hz- - -V
Number of analogue inputs2
Number of analogue outputs0
Voltage type of supply voltageAC/DC
Resolution of the analogue inputs10Bit
Resolution of the analogue outputs10Bit
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

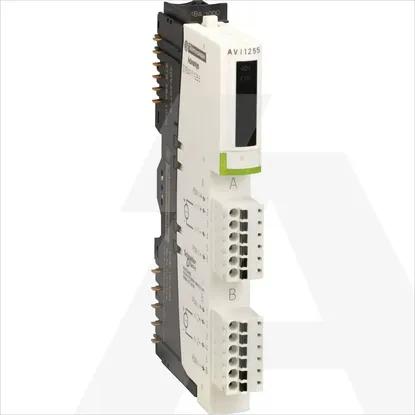

STBAVI1255K | Analog 0-10V in 2CH Base KIT Conns,base
