Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - analogue I/O module
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of analogue inputs0
Suitable for safety functionsNo
Number of HW-interfaces RS-2320
Width128.3mm
Number of HW-interfaces RS-4220
Supporting protocol for LONNo
Voltage type of supply voltageDC
Number of analogue outputs2
Height13.9mm
Depth70mm
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-4850
Number of HW-interfaces serial TTY0
Number of HW-interfaces parallel0
Supporting protocol for CANNo
Supporting protocol for TCP/IPNo
Supporting protocol for KNXNo
Supporting protocol for ModbusNo
Supporting protocol for INTERBUSNo
Supporting protocol for ASINo
Supporting protocol for PROFIBUSNo
Supporting protocol for Data-HighwayNo
Supporting protocol for DeviceNetNo
Number of HW-interfaces USB0
Number of HW-interfaces other0
Supporting protocol for other bus systemsNo
Input, currentNo
Input, voltageNo
Supporting protocol for SUCONETNo
Input, thermocoupleNo
Input signal, configurableNo
Output, currentNo
Output signal configurableYes
Output, voltageYes
Input, resistorNo
Input, resistance thermometerNo
Resolution of the analogue inputs12Bit
Rail mounting possibleYes
Explosion safety category for gasATEX gas-ex-protection, Cat. 3G
Supporting protocol for INTERBUS-SafetyNo
Appendant operation agent (Ex ia)No
System accessoryYes
Explosion safety category for dustOther
Degree of protection (IP)IP20
Fieldbus connection over separate bus coupler possibleYes
Number of interfaces PROFINET0
Supporting protocol for SERCOSNo
Type of electric connectionScrew connection
Appendant operation agent (Ex ib)No
Resolution of the analogue outputs12Bit
Front built-in possibleNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for AS-Interface Safety at WorkNo
Performance level according to EN ISO 13849-1None
IO link masterNo
Radio standard BluetoothNo
Wall mounting/direct mountingNo
Supporting protocol for EtherNet/IPNo
Number of HW-interfaces Wireless0
Radio standard Wi-Fi 802.11No
Rack-assembly possibleYes
Supporting protocol for Foundation FieldbusNo
Supply voltage AC 50 Hz- - -V
Supply voltage DC24 - 24V
Supporting protocol for PROFIsafeNo
Analogue inputs configurableNo
Analogue outputs configurableYes
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET IONo
Radio standard GPRSNo
Supporting protocol for PROFINET CBANo
Radio standard UMTSNo
SIL according to IEC 61508None
Radio standard GSMNo
Supply voltage AC 60 Hz- - -V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

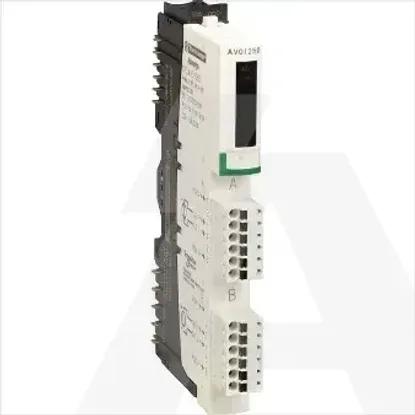

STBAVO1250K | ANALOG-/+10V OUT 2CH KIT Conns,base
