Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - analogue I/O module
- •1 KOM
- •SCHNEIDER
Technical specifications
Voltage type of supply voltageDC
Width128.3mm
Height13.9mm
Suitable for safety functionsNo
Number of analogue outputs2
Depth70mm
Number of analogue inputs0
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-4850
Number of HW-interfaces RS-2320
Number of HW-interfaces other0
Number of HW-interfaces USB0
Supporting protocol for LONNo
Number of HW-interfaces parallel0
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-4220
Supporting protocol for PROFIBUSNo
Supporting protocol for TCP/IPNo
Supporting protocol for Data-HighwayNo
Supporting protocol for ModbusNo
Input, thermocoupleNo
Supporting protocol for other bus systemsNo
Supporting protocol for DeviceNetNo
Supporting protocol for ASINo
Input, voltageNo
Supporting protocol for CANNo
Input, resistorNo
Supporting protocol for INTERBUSNo
Input, currentNo
Supporting protocol for KNXNo
Input, resistance thermometerNo
Supporting protocol for SUCONETNo
Supporting protocol for SERCOSNo
Resolution of the analogue outputs10Bit
Rail mounting possibleYes
Fieldbus connection over separate bus coupler possibleYes
Output signal configurableYes
Output, currentNo
Wall mounting/direct mountingNo
Explosion safety category for gasOther
Appendant operation agent (Ex ib)No
Number of interfaces PROFINET0
Appendant operation agent (Ex ia)No
Degree of protection (IP)IP20
Output, voltageYes
Number of HW-interfaces Wireless0
Explosion safety category for dustOther
Resolution of the analogue inputs10Bit
Rack-assembly possibleYes
Front built-in possibleNo
System accessoryYes
Supporting protocol for INTERBUS-SafetyNo
Input signal, configurableNo
Type of electric connectionScrew connection
Radio standard Wi-Fi 802.11No
IO link masterNo
Radio standard BluetoothNo
Supporting protocol for DeviceNet SafetyNo
Performance level according to EN ISO 13849-1None
SIL according to IEC 61508None
Supporting protocol for EtherNet/IPNo
Supply voltage AC 50 Hz- - -V
Supporting protocol for PROFIsafeNo
Analogue outputs configurableYes
Radio standard UMTSNo
Radio standard GSMNo
Supply voltage AC 60 Hz- - -V
Supply voltage DC0 - 10V
Radio standard GPRSNo
Analogue inputs configurableNo
Supporting protocol for PROFINET CBANo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET IONo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for AS-Interface Safety at WorkNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

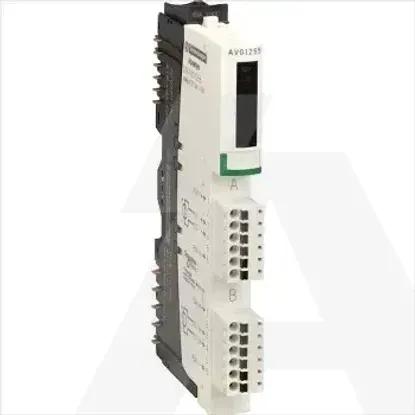

STBAVO1255K | Analog 0-10V OUT 2CHBASIC KIT Conns,base
