Details
- •Programmable logic controllers PLC
- •PLC analogue I/O-module
- •1 KOM
- •SCHNEIDER
Technical specifications
Width23.6mm
Height90mm
Number of analogue inputs0
Suitable for safety functionsNo
Depth70mm
Input, resistorNo
Input signal, configurableNo
Input, voltageNo
Input, resistance thermometerNo
Output, currentYes
Output, voltageYes
Input, currentNo
Output signal configurableNo
Input, thermocoupleNo
Number of analogue outputs4
Type of electric connectionSpring clamp connection
Analogue outputs configurableNo
Explosion safety category for gasNone
Resolution of the analogue outputs12Bit
Resolution of the analogue inputs12Bit
Appendant operation agent (Ex ia)No
Explosion safety category for dustNone
Appendant operation agent (Ex ib)No
Analogue inputs configurableNo
SIL according to IEC 61508None
Performance level according to EN ISO 13849-1None
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

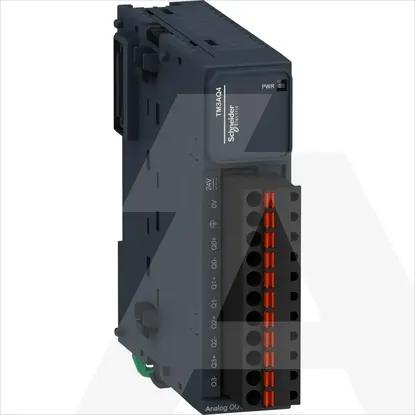

TM3AQ4G | Module TM3-4 Analog Outputs Spring
