Details
- •Programmable logic controllers PLC
- •PLC analogue I/O-module
- •1 KOM
- •SCHNEIDER
Technical specifications
Width23.6mm
Depth70mm
Input, resistorYes
Number of analogue inputs4
Suitable for safety functionsNo
Number of analogue outputs0
Height90mm
Input, voltageYes
Input, currentYes
Input, resistance thermometerNo
Resolution of the analogue inputs16Bit
Output signal configurableNo
Analogue outputs configurableNo
Explosion safety category for dustNone
Explosion safety category for gasNone
Input, thermocoupleYes
Output, voltageNo
Analogue inputs configurableYes
SIL according to IEC 61508None
Appendant operation agent (Ex ia)No
Output, currentNo
Type of electric connectionSpring clamp connection
Performance level according to EN ISO 13849-1None
Input signal, configurableNo
Appendant operation agent (Ex ib)No
Resolution of the analogue outputs12Bit
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

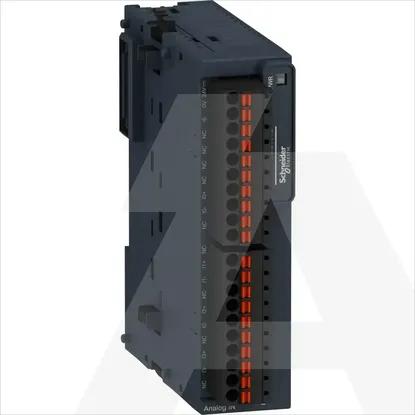

TM3TI4G | Module TM3-4 Inputs Temperature Spring
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Programmable logic controllers PLC
- PLC analogue I/O-module
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Width
23.6mm
Depth
70mm
Input, resistor
Number of analogue inputs
4
Suitable for safety functions
Number of analogue outputs
0
Height
90mm
Input, voltage
Input, current
Input, resistance thermometer
Resolution of the analogue inputs
16Bit
Output signal configurable
Analogue outputs configurable
Explosion safety category for dust
None
Explosion safety category for gas
None
Input, thermocouple
Output, voltage
Analogue inputs configurable
SIL according to IEC 61508
None
Appendant operation agent (Ex ia)
Output, current
Type of electric connection
Spring clamp connection
Performance level according to EN ISO 13849-1
None
Input signal, configurable
Appendant operation agent (Ex ib)
Resolution of the analogue outputs
12Bit
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
