Details
- •Programmable logic controllers PLC
- •PLC analogue I/O-module
- •1 KOM
- •SCHNEIDER
Technical specifications
Input, resistorNo
Depth70mm
Suitable for safety functionsNo
Input, currentNo
Height90mm
Input, voltageNo
Width23.6mm
Input, thermocoupleYes
Input, resistance thermometerYes
Output, currentNo
Analogue inputs configurableNo
Analogue outputs configurableNo
Appendant operation agent (Ex ib)No
SIL according to IEC 61508None
Performance level according to EN ISO 13849-1None
Output, voltageNo
Explosion safety category for gasNone
Explosion safety category for dustNone
Input signal, configurableNo
Appendant operation agent (Ex ia)No
Type of electric connectionSpring clamp connection
Output signal configurableNo
Number of analogue inputs8
Number of analogue outputs0
Resolution of the analogue inputs16Bit
Resolution of the analogue outputs12Bit
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

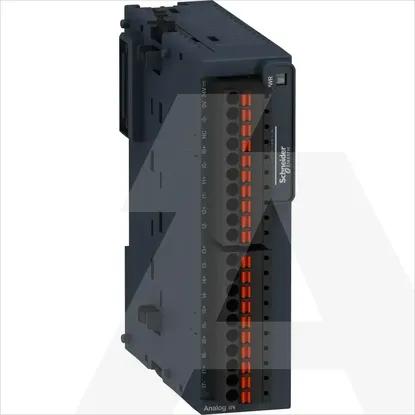

TM3TI8TG | Module TM3-8 Inputs Temperature Spring
