Details
- •Programmable logic controllers PLC
- •PLC analogue I/O-module
- •1 KOM
- •SCHNEIDER
Technical specifications
Suitable for safety functionsNo
Input, resistorYes
Number of analogue outputs1
Width23.6mm
Height90mm
Input, currentYes
Number of analogue inputs2
Input, voltageYes
Depth70mm
Appendant operation agent (Ex ia)No
Output, currentYes
Output, voltageYes
Performance level according to EN ISO 13849-1None
Appendant operation agent (Ex ib)No
SIL according to IEC 61508None
Resolution of the analogue outputs12Bit
Resolution of the analogue inputs16Bit
Analogue outputs configurableNo
Explosion safety category for dustNone
Analogue inputs configurableYes
Output signal configurableNo
Type of electric connectionScrew connection
Input signal, configurableNo
Input, thermocoupleYes
Input, resistance thermometerNo
Explosion safety category for gasNone
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

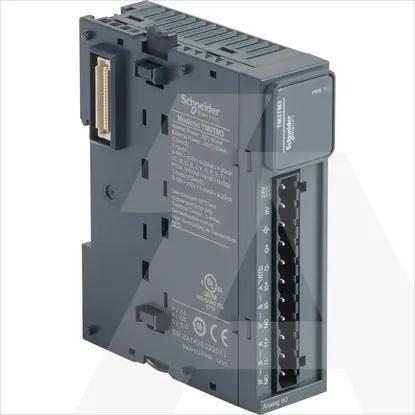

TM3TM3 | Module TM3-2 Temp Inputs+ 1 Analog Out.
