Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •SCHNEIDER
Technical specifications
Rated operation power at AC-3, 400 V37kW
Type of control elementTurn button
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP), front sideIP65
Conditioned rated short-circuit current Iq10kA
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Number of auxiliary contacts as normally open contact0
Number of switches1
Rated operating voltage690 - 690V
Version as safety switchNo
Rated short-time withstand current lcw2.1kA
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Suitable for floor mountingNo
Colour control elementRed
Voltage release optionalNo
Version as reversing switchNo
Rated permanent current at AC-21, 400 V160A
Motor drive optionalNo
Rated permanent current at AC-23, 400 V21.8A
Device constructionBuilt-in device fixed built-in technique
Max. rated operation voltage Ue AC690V
Version as maintenance-/service switchNo
Switching power at 400 V90kW
Rated operation power at AC-23, 400 V45kW
Version as main switchYes
Version as emergency stop installationYes
Rated permanent current Iu175A
Number of poles3
InterlockableYes
Suitable for front mounting 4-holeYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

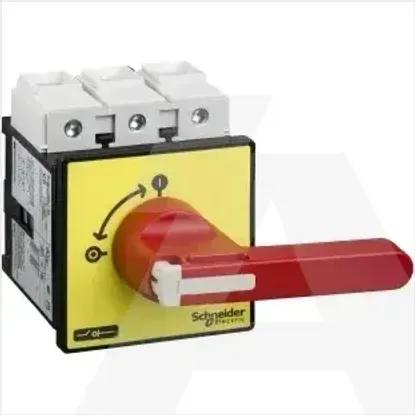

VCF6 | Sklopka 3P 175A Crvena 4 Vijka
