Details

  • •Sensors
  • •End switch
  • •1 KOM
  • •SCHNEIDER

Technical specifications

Coating housingOther
Suitable for safety functionsNo
Explosion safety category for dustNone
Forced openingYes
Rated operation current Ie at DC-13, 230 V0.27A
With status indicationNo
Switching functionQuick-break switch
Explosion safety category for gasNone
Type of electric connectionCable entry PG
Construction type housingSpecial construction
Rated operation current Ie at AC-15, 230 V3A
Type of interface for safety communicationNone
Material housingMetal
Number of safety auxiliary contacts0
Rated operation current Ie at AC-15, 125 V0A
Rated operation current Ie at AC-15, 24 V0A
Rated operation current Ie at DC-13, 125 V0A
Type of interfaceNone
Length of sensor30mm
Type of control elementRoller lever
Housing according to normOther
Alignment of the control elementOther
Number of contacts as normally open contact1
Rated operation current Ie at DC-13, 24 V0A
Number of contacts as change-over contact0
Ambient temperature during operating-25 - 70°C
Output electronicNo
Diameter sensor0mm
Number of contacts as normally closed contact1
Switching function latchingNo
Degree of protection (IP)IP66/IP67
Width sensor64mm
Height of sensor64mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

XCKM115

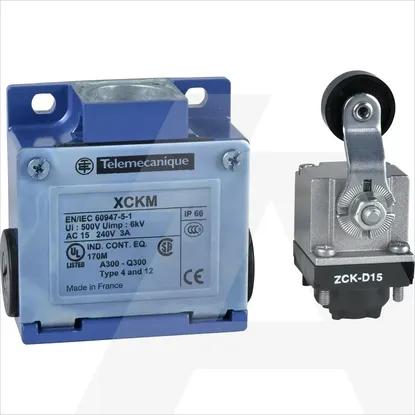

Main Product Image
