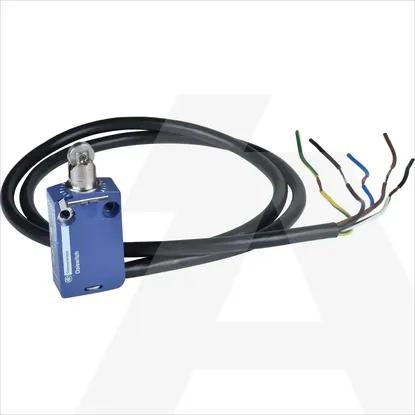

XCMD2102L5

Diameter sensor

0mm

Rated operation current Ie at DC-13, 24 V

0A

Rated operation current Ie at AC-15, 24 V

0A

Housing according to norm

Other

Rated operation current Ie at AC-15, 125 V

0A

Rated operation current Ie at DC-13, 125 V

0A

Rated operation current Ie at AC-15, 230 V

1.5A

Rated operation current Ie at DC-13, 230 V

0.1A

Width sensor

30mm

Output electronic

No

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

Switching function latching

No

Type of interface

None

Construction type housing

Other

Type of interface for safety communication

None

Switching function

Quick-break switch

Coating housing

Other

Type of control element

Roller cam

Explosion safety category for gas

None

Degree of protection (IP)

IP66/IP67

Height of sensor

50mm

Length of sensor

16mm

Number of safety auxiliary contacts

0

Alignment of the control element

Roller cam straight

Ambient temperature during operating

-25 - 70°C

Forced opening

Yes

Suitable for safety functions

No

With status indication

No

Explosion safety category for dust

None

Material housing

Metal

Type of electric connection

With cable preassembled

Number of contacts as change-over contact

0
