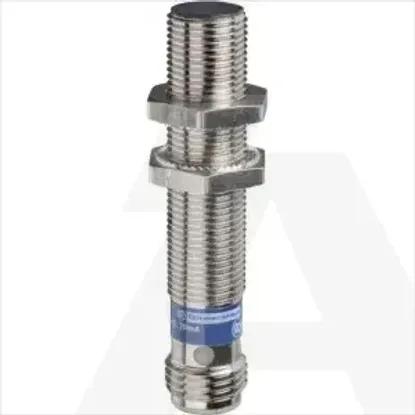

XS512B1DAM12
Code: 1721447
ManufacturerSchneider Electric
Catalog numberXS512B1DAM12
TypeXS512B1DAM12
CategoryInductive proximity switch
EAN code3389110144192
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •SCHNEIDER
Technical specifications
Coating housingNickel-plated
Suitable for safety functionsNo
Voltage typeAC/DC
Switching frequency5000Hz
CascadableNo
Material housingMetal
Type of interface for safety communicationNone
Rated control supply voltage Us at AC 50HZ- - -V
Number of contact energized outputs with signalling function0
Number of semiconductor outputs with signalling function0
With monitoring function downstream switching devicesNo
Mechanical mounting condition for sensorConcise
Explosion safety category for dustNone
Type of switch functionNormally open contact
Number of protected contact energized outputs0
Max. output current at protected output100mA
Explosion safety category for gasNone
Rated control supply voltage Us at AC 60HZ- - -V
Number of protected semiconductor outputs0
Type of electric connectionConnector M12
Construction type housingCylinder, screw-thread
Type of interfaceNone
Type of actuationMetallic Target
Rated control supply voltage Us at DC12 - 48V
Category according to EN 954-11
Compression-resistantNo
Performance level according to EN ISO 13849-1None
Interference resistance to magnetic fieldsImmune against magnetic DC- and AC-field
SIL according to IEC 61508None
Switching distance2mm
Type of switching output2-wire
Supply voltage12 - 48V
Width sensor-mm
Diameter sensor12mm
Height of sensor-mm
Length of sensor61mm
