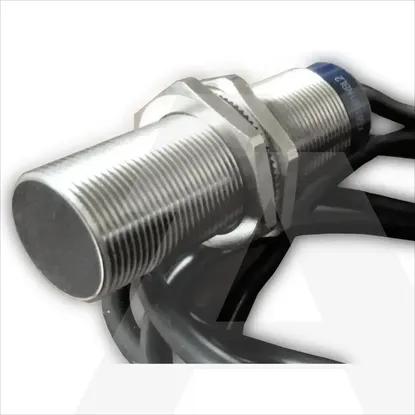

XS608B1PAL2
Code: 1721599
ManufacturerSchneider Electric
Catalog numberXS608B1PAL2
TypeXS608B1PAL2
CategoryInductive proximity switch
EAN code3389110145595
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •SCHNEIDER
Technical specifications
Material housingMetal
Suitable for safety functionsNo
Voltage typeAC/DC
Coating housingOther
CascadableNo
Construction type housingCylinder, screw-thread
Type of switch functionNormally open contact
Number of protected semiconductor outputs1
Number of contact energized outputs with signalling function0
Rated control supply voltage Us at AC 50HZ- - -V
Explosion safety category for gasNone
Switching frequency2500Hz
Type of electric connectionCable radial
Number of semiconductor outputs with signalling function1
Type of interface for safety communicationNone
Rated control supply voltage Us at DC12 - 48V
Rated control supply voltage Us at AC 60HZ- - -V
Explosion safety category for dustNone
Number of protected contact energized outputs0
Mechanical mounting condition for sensorConcise
Max. output current at protected output200mA
With monitoring function downstream switching devicesNo
Type of actuationMetallic Target
Type of interfaceNone
Category according to EN 954-11
Interference resistance to magnetic fieldsImmune against magnetic DC-field
Compression-resistantNo
Performance level according to EN ISO 13849-1None
SIL according to IEC 61508None
Switching distance2.5mm
Type of switching outputPNP/PNP
Supply voltage12 - 48V
Width sensor-mm
Diameter sensor8mm
Height of sensor-mm
Length of sensor50mm
