Details
- •Sensors for automation technology
- •End switch
- •1 KOM
- •SCHNEIDER
Technical specifications
With status indicationNo
Rated operation current Ie at DC-13, 230 V0.1A
Rated operation current Ie at AC-15, 230 V1.5A
Material housingPlastic
Suitable for safety functionsNo
Coating housingOther
Switching functionQuick-break switch
Degree of protection (IP)IP66/IP67
Type of electric connectionOther
Type of interface for safety communicationNone
Type of interfaceNone
Construction type housingCuboid
Number of safety auxiliary contacts0
Explosion safety category for dustNone
Type of control elementNone
Forced openingYes
Rated operation current Ie at DC-13, 24 V0A
Rated operation current Ie at DC-13, 125 V0A
Rated operation current Ie at AC-15, 125 V0A
Rated operation current Ie at AC-15, 24 V0A
Explosion safety category for gasNone
Ambient temperature during operating-25 - 70°C
Switching function latchingNo
Diameter sensor0mm
Alignment of the control elementOther
Housing according to normDIN EN 50047
Width sensor31mm
Height of sensor65mm
Length of sensor30mm
Number of contacts as normally closed contact1
Number of contacts as normally open contact1
Output electronicNo
Number of contacts as change-over contact0
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

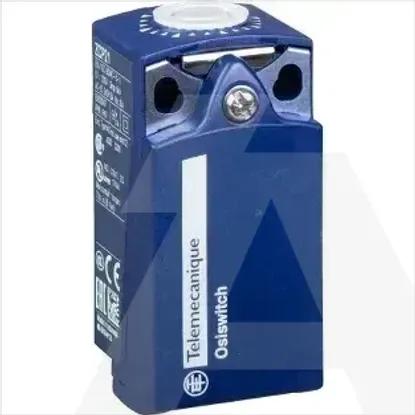

ZCP21
