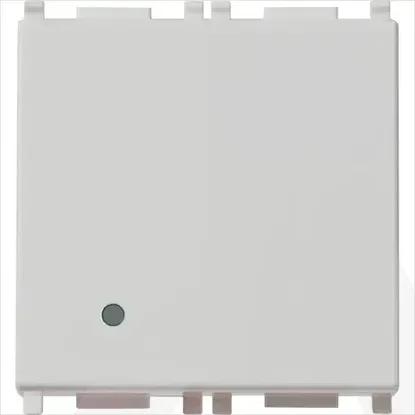

14001.2.SL | 1P 16AX 1-way switch 2M Silver
Code: 1729072
Details
- •Domestic switching devices
- •Installation switch
- •1 KOM
- •VIMAR
Technical specifications
Wiring systemOff switch 1-pole
Type of fasteningEngage (snap)
Push button switchYes
Number of modules (module system)2
Label space/information surfaceYes
Assembly arrangementModular device for domestic switching devices
Mounting methodFlush mounted (plaster)
Material qualityThermoplastic
Number of rockers1
Function lightingControl and orientation
ColourSilver
Halogen freeYes
Surface protectionLacquered
Nominal voltage250V
Method of operationRocker/button
Connection typeScrewed terminal
Suitable for degree of protection (IP)IP40
With mounting plateNo
Washing machine switchNo
Surface finishingGlossy
RAL-number (similar)9006
Type of lightingLED exchangeable
IlluminationOptional
Feedback-signal contactNo
MaterialPlastic
Height of device49.00mm
Built-in depth24.00mm
Width of device44.80mm
Depth of device38.40mm
Rated current16.00A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
