Details
- •Domestic switching devices
- •Installation switch
- •1 KOM
- •VIMAR
Technical specifications
Assembly arrangementModular device for domestic switching devices
Nominal voltage250V
Method of operationRocker/button
Mounting methodFlush mounted (plaster)
With mounting plateNo
Built-in depth24.00mm
Halogen freeYes
ColourWhite
Surface protectionUntreated
Connection typeScrewed terminal
IlluminationOptional
Feedback-signal contactNo
Wiring systemTwo-way switch
Type of lightingLED exchangeable
Push button switchYes
Type of fasteningEngage (snap)
Material qualityThermoplastic
RAL-number (similar)9003
Rated current20.00A
MaterialPlastic
Number of rockers1
Washing machine switchNo
Depth of device38.40mm
Surface finishingGlossy
Height of device49.00mm
Suitable for degree of protection (IP)IP40
Function lightingControl and orientation
Label space/information surfaceYes
Number of modules (module system)1
Width of device22.30mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

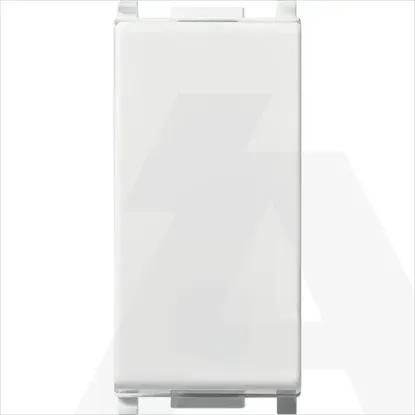

14006 | 1P 20AX 2-way switch white
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Domestic switching devices
- Installation switch
- 1 KOM
- VIMAR
DetailsTechnical specifications
Technical specifications
Assembly arrangement
Modular device for domestic switching devices
Nominal voltage
250V
Method of operation
Rocker/button
Mounting method
Flush mounted (plaster)
With mounting plate
Built-in depth
24.00mm
Halogen free
Colour
White
Surface protection
Untreated
Connection type
Screwed terminal
Illumination
Optional
Feedback-signal contact
Wiring system
Two-way switch
Type of lighting
LED exchangeable
Push button switch
Type of fastening
Engage (snap)
Material quality
Thermoplastic
RAL-number (similar)
9003
Rated current
20.00A
Material
Plastic
Number of rockers
1
Washing machine switch
Depth of device
38.40mm
Surface finishing
Glossy
Height of device
49.00mm
Suitable for degree of protection (IP)
IP40
Function lighting
Control and orientation
Label space/information surface
Yes
Number of modules (module system)
1
Width of device
22.30mm
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
