Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •VIMAR
Technical specifications
Rated voltage230V
Current limiting class1
Frequency50 - 60Hz
Release characteristicC
Voltage typeAC
Built-in depth38.00mm
Rated current10A
Degree of protection (IP)IP40
Concurrently switching neutral conductorNo
Number of poles (total)1
Width in number of modular spacings1
Number of protected poles1
Over voltage category3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V1.50kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

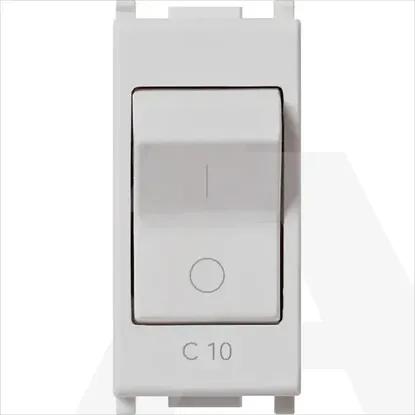

14404.10.SL | 1P C10 CB 120-230V Silver
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- VIMAR
DetailsTechnical specifications
Technical specifications
Rated voltage
230V
Current limiting class
1
Frequency
50 .. 60Hz
Release characteristic
C
Voltage type
AC
Built-in depth
38.00mm
Rated current
10A
Degree of protection (IP)
IP40
Concurrently switching neutral conductor
Number of poles (total)
1
Width in number of modular spacings
1
Number of protected poles
1
Over voltage category
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
1.50kA
