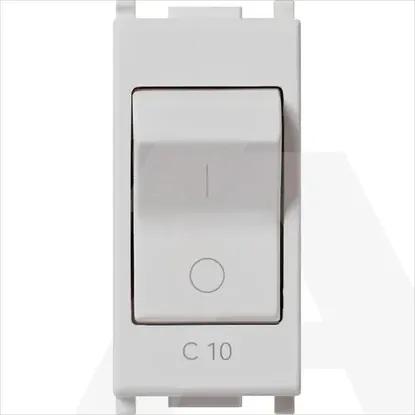

Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •VIMAR

Technical specifications

Number of protected poles1
Over voltage category3
Current limiting class1
Concurrently switching neutral conductorYes
Frequency50 - 60Hz
Built-in depth38mm
Width in number of modular spacings1
Degree of protection (IP)IP40
Voltage typeAC
Rated voltage230V
Rated current10A
Release characteristicC
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V3kA
