Details
- •Domestic switching devices
- •Installation switch
- •1 KOM
- •VIMAR
Technical specifications
Method of operationRocker/button
Assembly arrangementModular device for domestic switching devices
Wiring systemTwo-way switch
Number of modules (module system)1
Push button switchYes
Number of rockers1
Type of fasteningEngage (snap)
Surface protectionUntreated
MaterialPlastic
Halogen freeYes
Material qualityThermoplastic
With mounting plateNo
Mounting methodFlush mounted (plaster)
Surface finishingMatt
ColourGrey
Label space/information surfaceYes
Suitable for degree of protection (IP)IP40
Nominal voltage250V
RAL-number (similar)7015
Function lightingControl and orientation
Type of lightingLED exchangeable
IlluminationOptional
Height of device50.10mm
Washing machine switchNo
Width of device24.80mm
Feedback-signal contactNo
Built-in depth23.30mm
Depth of device36.50mm
Rated current16.00A
Connection typeScrewed terminal
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

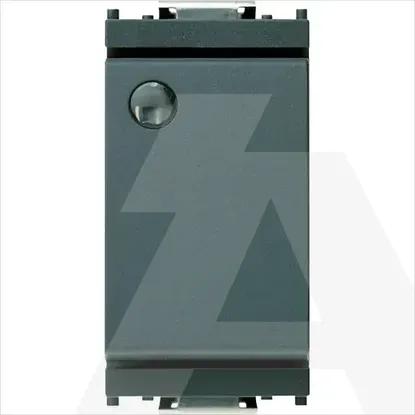

16025 | 1P 16AX 2-way switch luminous grey
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Domestic switching devices
- Installation switch
- 1 KOM
- VIMAR
DetailsTechnical specifications
Technical specifications
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Wiring system
Two-way switch
Number of modules (module system)
1
Push button switch
Number of rockers
1
Type of fastening
Engage (snap)
Surface protection
Untreated
Material
Plastic
Halogen free
Material quality
Thermoplastic
With mounting plate
Mounting method
Flush mounted (plaster)
Surface finishing
Matt
Colour
Grey
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Nominal voltage
250V
RAL-number (similar)
7015
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Illumination
Optional
Height of device
50.10mm
Washing machine switch
Width of device
24.80mm
Feedback-signal contact
Built-in depth
23.30mm
Depth of device
36.50mm
Rated current
16.00A
Connection type
Screwed terminal
