Details
- •Domestic switching devices
- •Installation switch
- •1 KOM
- •VIMAR
Technical specifications
Type of fasteningEngage (snap)
Built-in depth25.00mm
Nominal voltage250V
Washing machine switchNo
Method of operationRocker/button
RAL-number (similar)9016
Type of lightingLED exchangeable
Surface finishingMatt
Feedback-signal contactNo
MaterialPlastic
Mounting methodFlush mounted (plaster)
Connection typeScrewed terminal
ColourWhite
Rated current16.00A
Width of device22.30mm
Push button switchYes
Assembly arrangementModular device for domestic switching devices
IlluminationOptional
With mounting plateNo
Suitable for degree of protection (IP)IP40
Material qualityThermoplastic
Surface protectionUntreated
Wiring systemOff switch 1-pole
Number of rockers1
Halogen freeYes
Function lightingControl and orientation
Depth of device36.10mm
Height of device49.00mm
Number of modules (module system)1
Label space/information surfaceYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

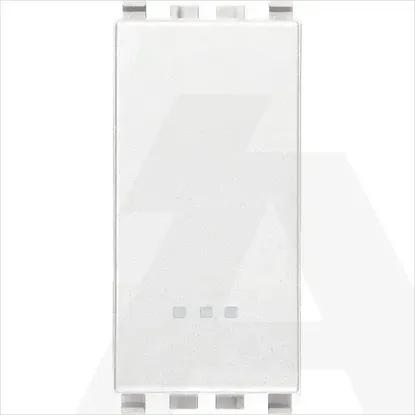

20001.B | 1P 16AX 1-way switch white
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Domestic switching devices
- Installation switch
- 1 KOM
- VIMAR
DetailsTechnical specifications
Technical specifications
Type of fastening
Engage (snap)
Built-in depth
25.00mm
Nominal voltage
250V
Washing machine switch
Method of operation
Rocker/button
RAL-number (similar)
9016
Type of lighting
LED exchangeable
Surface finishing
Matt
Feedback-signal contact
Material
Plastic
Mounting method
Flush mounted (plaster)
Connection type
Screwed terminal
Colour
White
Rated current
16.00A
Width of device
22.30mm
Push button switch
Assembly arrangement
Modular device for domestic switching devices
Illumination
Optional
With mounting plate
Suitable for degree of protection (IP)
IP40
Material quality
Thermoplastic
Surface protection
Untreated
Wiring system
Off switch 1-pole
Number of rockers
1
Halogen free
Function lighting
Control and orientation
Depth of device
36.10mm
Height of device
49.00mm
Number of modules (module system)
1
Label space/information surface
Yes
