Details
- •Domestic switching devices
- •Installation switch
- •1 KOM
- •VIMAR
Technical specifications
Assembly arrangementModular device for domestic switching devices
Nominal voltage250V
ColourSilver
Halogen freeYes
Mounting methodFlush mounted (plaster)
Method of operationRocker/button
Connection typeScrewed terminal
With mounting plateNo
Surface protectionLacquered
Suitable for degree of protection (IP)IP40
Type of lightingLED exchangeable
Feedback-signal contactNo
Rated current16.00A
Material qualityThermoplastic
Washing machine switchNo
Width of device22.30mm
Number of rockers1
Wiring systemOff switch 1-pole
RAL-number (similar)9022
Surface finishingMatt
Push button switchYes
Type of fasteningEngage (snap)
Built-in depth25.00mm
IlluminationOptional
Label space/information surfaceYes
Number of modules (module system)1
Height of device49.00mm
Depth of device36.10mm
MaterialPlastic
Function lightingControl and orientation
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

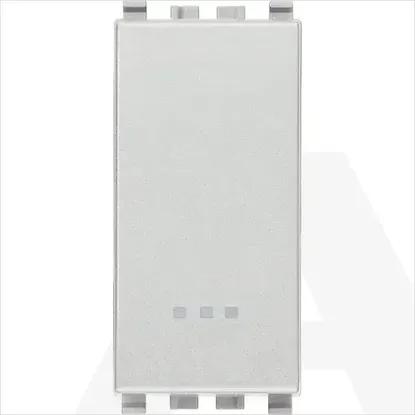

20001.N | 1P 16AX 1-way switch Next
