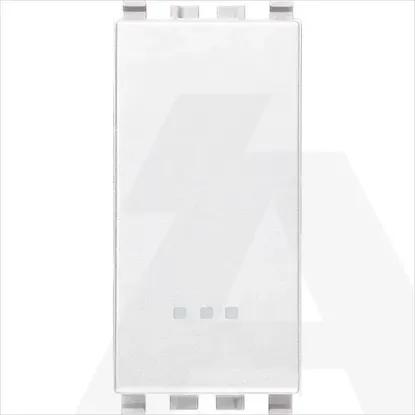

20002.B | 1P 20AX 1-way switch white
Code: 1732108
Details
- •Domestic switching devices
- •Installation switch
- •1 KOM
- •VIMAR
Technical specifications
Assembly arrangementModular device for domestic switching devices
Number of modules (module system)1
Wiring systemOff switch 1-pole
Surface protectionUntreated
Halogen freeYes
With mounting plateNo
ColourWhite
Push button switchYes
Number of rockers1
MaterialPlastic
Material qualityThermoplastic
Label space/information surfaceYes
Surface finishingMatt
Type of fasteningEngage (snap)
Rated current20.00A
Width of device22.30mm
RAL-number (similar)9016
Washing machine switchNo
IlluminationOptional
Built-in depth25.00mm
Nominal voltage250V
Type of lightingLED exchangeable
Depth of device36.80mm
Height of device49.00mm
Connection typeScrewed terminal
Method of operationRocker/button
Feedback-signal contactNo
Mounting methodFlush mounted (plaster)
Function lightingControl and orientation
Suitable for degree of protection (IP)IP40
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
20002.B | 1P 20AX 1-way switch white
Details
- Domestic switching devices
- Installation switch
- 1 KOM
- VIMAR
DetailsTechnical specifications
Technical specifications
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Wiring system
Off switch 1-pole
Surface protection
Untreated
Halogen free
With mounting plate
Colour
White
Push button switch
Number of rockers
1
Material
Plastic
Material quality
Thermoplastic
Label space/information surface
Yes
Surface finishing
Matt
Type of fastening
Engage (snap)
Rated current
20.00A
Width of device
22.30mm
RAL-number (similar)
9016
Washing machine switch
Illumination
Optional
Built-in depth
25.00mm
Nominal voltage
250V
Type of lighting
LED exchangeable
Depth of device
36.80mm
Height of device
49.00mm
Connection type
Screwed terminal
Method of operation
Rocker/button
Feedback-signal contact
Mounting method
Flush mounted (plaster)
Function lighting
Control and orientation
Suitable for degree of protection (IP)
IP40
