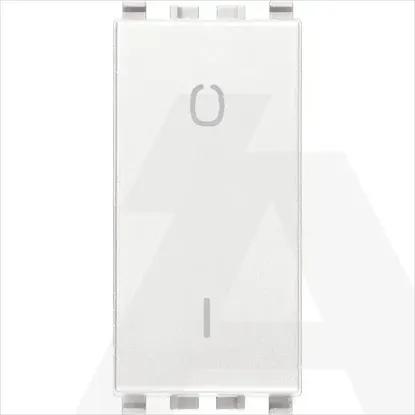

20015.B | 2P 16AX 1-way switch white
Code: 1732179
Details
- •Domestic switching devices
- •Installation switch
- •1 KOM
- •VIMAR
Technical specifications
Wiring system2-pole switch
Assembly arrangementModular device for domestic switching devices
Mounting methodFlush mounted (plaster)
MaterialPlastic
Push button switchYes
Halogen freeYes
Type of fasteningEngage (snap)
Number of modules (module system)1
Surface finishingMatt
IlluminationOptional
ColourWhite
RAL-number (similar)9016
Label space/information surfaceYes
Function lightingControl and orientation
Material qualityThermoplastic
Type of lightingLED exchangeable
Rated current16.00A
Number of rockers1
Feedback-signal contactNo
Surface protectionUntreated
Method of operationRocker/button
Nominal voltage250V
With mounting plateNo
Suitable for degree of protection (IP)IP40
Depth of device36.80mm
Built-in depth25.00mm
Connection typeScrewed terminal
Washing machine switchYes
Height of device49.00mm
Width of device22.30mm
