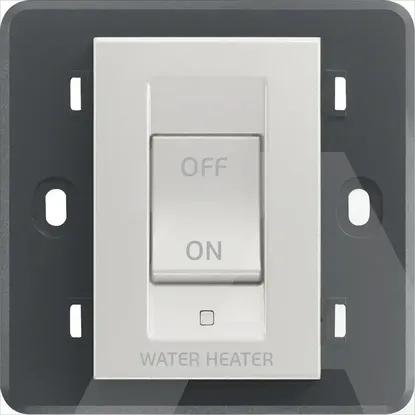

20017.WH.N | 2P 32A 1-way switch WATER/HEATER
Code: 1732206
Details
- •Domestic switching devices
- •Installation switch
- •1 KOM
- •VIMAR
Technical specifications
Wiring system2-pole switch
Method of operationRocker/button
Number of rockers1
Mounting methodFlush mounted (plaster)
With mounting plateNo
Type of fasteningScrew mounting
Push button switchYes
Halogen freeYes
Number of modules (module system)3
Material qualityThermoplastic
MaterialPlastic
Surface protectionLacquered
Surface finishingMatt
ColourSilver
Label space/information surfaceYes
Function lightingControl and orientation
Suitable for degree of protection (IP)IP40
IlluminationOptional
Type of lightingLED exchangeable
Feedback-signal contactNo
Rated current32.00A
Nominal voltage250V
Connection typeScrewed terminal
Width of device82.50mm
Washing machine switchYes
Height of device82.50mm
Built-in depth22.50mm
Depth of device32.50mm
RAL-number (similar)9022
Assembly arrangementOther
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
20017.WH.N | 2P 32A 1-way switch WATER/HEATER
Details
- Domestic switching devices
- Installation switch
- 1 KOM
- VIMAR
DetailsTechnical specifications
Technical specifications
Wiring system
2-pole switch
Method of operation
Rocker/button
Number of rockers
1
Mounting method
Flush mounted (plaster)
With mounting plate
Type of fastening
Screw mounting
Push button switch
Halogen free
Number of modules (module system)
3
Material quality
Thermoplastic
Material
Plastic
Surface protection
Lacquered
Surface finishing
Matt
Colour
Silver
Label space/information surface
Yes
Function lighting
Control and orientation
Suitable for degree of protection (IP)
IP40
Illumination
Optional
Type of lighting
LED exchangeable
Feedback-signal contact
Rated current
32.00A
Nominal voltage
250V
Connection type
Screwed terminal
Width of device
82.50mm
Washing machine switch
Height of device
82.50mm
Built-in depth
22.50mm
Depth of device
32.50mm
RAL-number (similar)
9022
Assembly arrangement
Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
