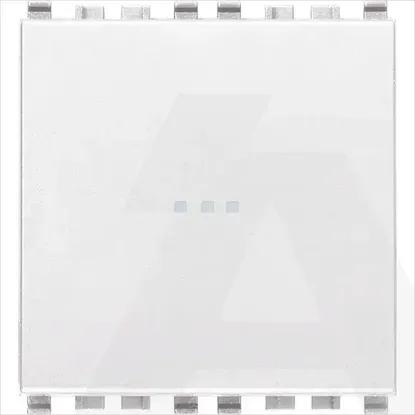

20113.2.B | Axial 1P 16AX reversing switch 2M
Code: 1732376
ManufacturerVimar
Catalog number20113.2.B
Type20113.2.B
CategoryInstallation switch
EAN code8007352460164
Details
- •Domestic switching devices
- •Installation switch
- •1 KOM
- •VIMAR
Technical specifications
Assembly arrangementModular device for domestic switching devices
ColourWhite
Built-in depth34.50mm
With mounting plateNo
IlluminationOptional
Connection typeScrewed terminal
Halogen freeYes
Surface finishingMatt
RAL-number (similar)9016
Material qualityThermoplastic
Type of lightingLED exchangeable
Number of rockers0
MaterialPlastic
Depth of device44.00mm
Height of device49.00mm
Number of modules (module system)2
Type of fasteningEngage (snap)
Washing machine switchNo
Label space/information surfaceYes
Function lightingControl and orientation
Width of device44.80mm
Push button switchYes
Feedback-signal contactNo
Surface protectionUntreated
Nominal voltage250V
Mounting methodFlush mounted (plaster)
Method of operationRocker/button
Rated current16.00A
Wiring systemIntermediate switch
Suitable for degree of protection (IP)IP40
