Details

  • •Low-voltage industrial components
  • •Frequency converter =< 1 kV
  • •1 KOM
  • •EATON

Technical specifications

Mains frequency50/60 Hz
Number of phases input1
Mains voltage200 - 240V
Number of phases output3
Max. output at quadratic load at rated output voltage2.2kW
Max. output at linear load at rated output voltage2.2kW
Max. output voltage250V
Max. output frequency500Hz
Power consumption103.4W
Relative symmetric net frequency tolerance10%
Nominal output current I2N11A
Number of digital outputs1
Application in industrial area permittedYes
Number of analogue inputs2
Application in domestic- and commercial area permittedYes
Number of digital inputs4
Number of analogue outputs1
Relative symmetric net voltage tolerance10%
With control elementYes
Supporting protocol for ASINo
Supporting protocol for PROFIBUSNo
Supporting protocol for TCP/IPNo
Supporting protocol for CANYes
Supporting protocol for INTERBUSNo
Supporting protocol for ModbusYes
Supporting protocol for Data-HighwayNo
Supporting protocol for LONNo
Supporting protocol for SUCONETNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for PROFINET IONo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for KNXNo
Supporting protocol for PROFINET CBANo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for SERCOSNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFIsafeNo
Number of interfaces PROFINET0
Supporting protocol for DeviceNetNo
Number of HW-interfaces RS-2320
Supporting protocol for BACnetNo
Number of HW-interfaces RS-4851
Number of HW-interfaces RS-4220
Supporting protocol for other bus systemsYes
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces serial TTY0
Number of HW-interfaces USB0
Number of HW-interfaces other0
With optical interfaceNo
With PC connectionYes
Integrated breaking resistanceYes
4-quadrant operation possibleYes
Type of converterU converter
Degree of protection (IP)IP20
Degree of protection (NEMA)Other
Height231mm
Width107mm
Depth152mm
Number of HW-interfaces parallel0

Related products

*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

DC1-12011FB-A20CE1

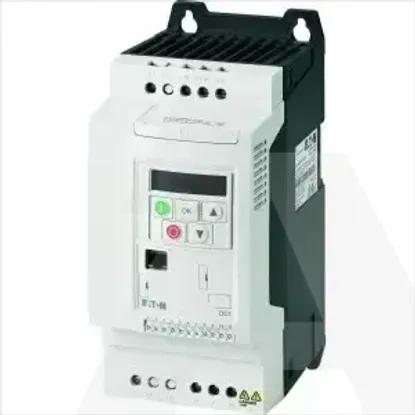

Main Product Image

Details

  • Low-voltage industrial components
  • Frequency converter =< 1 kV
  • 1 KOM
  • EATON

Technical specifications

Mains frequency

50/60 Hz

Number of phases input

1

Mains voltage

200 .. 240V

Number of phases output

3

Max. output at quadratic load at rated output voltage

2.2kW

Max. output at linear load at rated output voltage

2.2kW

Max. output voltage

250V

Max. output frequency

500Hz

Power consumption

103.4W

Relative symmetric net frequency tolerance

10%

Nominal output current I2N

11A

Number of digital outputs

1

Application in industrial area permitted

Number of analogue inputs

2

Application in domestic- and commercial area permitted

Number of digital inputs

4

Number of analogue outputs

1

Relative symmetric net voltage tolerance

10%

With control element

Supporting protocol for ASI

Supporting protocol for PROFIBUS

Supporting protocol for TCP/IP

Supporting protocol for CAN

Supporting protocol for INTERBUS

Supporting protocol for Modbus

Supporting protocol for Data-Highway

Supporting protocol for LON

Supporting protocol for SUCONET

Supporting protocol for EtherNet/IP

Supporting protocol for PROFINET IO

Supporting protocol for Foundation Fieldbus

Supporting protocol for KNX

Supporting protocol for PROFINET CBA

Supporting protocol for DeviceNet Safety

Supporting protocol for AS-Interface Safety at Work

Supporting protocol for SERCOS

Supporting protocol for INTERBUS-Safety

Supporting protocol for SafetyBUS p

Supporting protocol for PROFIsafe

Number of interfaces PROFINET

0

Supporting protocol for DeviceNet

Number of HW-interfaces RS-232

0

Supporting protocol for BACnet

Number of HW-interfaces RS-485

1

Number of HW-interfaces RS-422

0

Supporting protocol for other bus systems

Number of HW-interfaces industrial Ethernet

0

Number of HW-interfaces serial TTY

0

Number of HW-interfaces USB

0

Number of HW-interfaces other

0

With optical interface

With PC connection

Integrated breaking resistance

4-quadrant operation possible

Type of converter

U converter

Degree of protection (IP)

IP20

Degree of protection (NEMA)

Other

Height

231mm

Width

107mm

Depth

152mm

Number of HW-interfaces parallel

0
