Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •EATON
Technical specifications
Number of analogue outputs1
Number of digital inputs4
Number of digital outputs1
Power consumption44W
Width107mm
Number of analogue inputs2
With control elementYes
Height231mm
Depth152mm
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-2320
Supporting protocol for LONNo
Number of HW-interfaces RS-4220
Number of HW-interfaces USB0
Number of HW-interfaces RS-4851
Supporting protocol for TCP/IPNo
With optical interfaceNo
Supporting protocol for ModbusYes
Degree of protection (IP)IP20
Number of HW-interfaces serial TTY0
Supporting protocol for CANYes
Supporting protocol for DeviceNetNo
Supporting protocol for other bus systemsYes
Number of HW-interfaces parallel0
Supporting protocol for PROFIBUSNo
Supporting protocol for INTERBUSNo
Supporting protocol for KNXNo
Number of HW-interfaces other0
With PC connectionYes
Supporting protocol for Data-HighwayNo
Supporting protocol for ASINo
Supporting protocol for SUCONETNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for SERCOSNo
Number of phases input1
Number of phases output1
Application in domestic- and commercial area permittedYes
Mains voltage200 - 240V
Type of converterU converter
Supporting protocol for Foundation FieldbusNo
Max. output at quadratic load at rated output voltage1.1kW
Application in industrial area permittedYes
Max. output frequency500Hz
Supporting protocol for PROFINET CBANo
Number of interfaces PROFINET0
Supporting protocol for AS-Interface Safety at WorkNo
Relative symmetric net frequency tolerance10%
Supporting protocol for DeviceNet SafetyNo
Relative symmetric net voltage tolerance10%
4-quadrant operation possibleYes
Mains frequency50/60 Hz
Max. output at linear load at rated output voltage1.1kW
Supporting protocol for PROFINET IONo
Integrated breaking resistanceYes
Supporting protocol for EtherNet/IPYes
Supporting protocol for PROFIsafeNo
Nominal output current I2N11A
Max. output voltage250V
Supporting protocol for SafetyBUS pNo
Supporting protocol for BACnetNo
Degree of protection (NEMA)Other
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

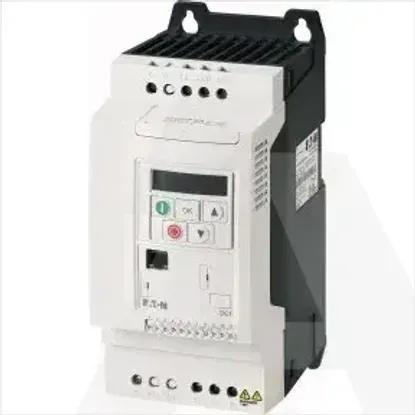

DC1-S2011NB-A20CE1
