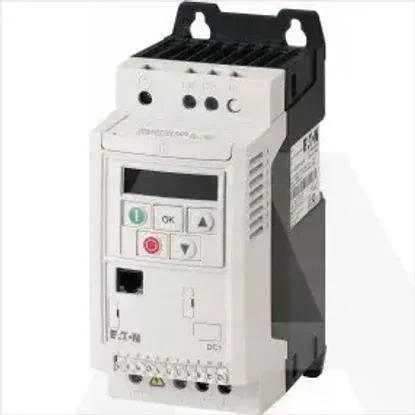

DC1-S27D0FN-A20CE1
Code: 1745814
Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •EATON
Technical specifications
Mains voltage200 - 240V
Mains frequency50/60 Hz
Number of phases output1
Number of phases input1
Max. output frequency500Hz
Max. output voltage250V
Max. output at quadratic load at rated output voltage0.75kW
Relative symmetric net frequency tolerance10%
Power consumption37.5W
Max. output at linear load at rated output voltage0.75kW
Nominal output current I2N7A
Number of analogue outputs1
Number of analogue inputs2
Relative symmetric net voltage tolerance10%
With control elementYes
Number of digital outputs1
Application in industrial area permittedYes
Number of digital inputs4
Supporting protocol for KNXNo
Supporting protocol for PROFIBUSNo
Supporting protocol for TCP/IPNo
Application in domestic- and commercial area permittedYes
Supporting protocol for INTERBUSNo
Supporting protocol for ASINo
Supporting protocol for CANYes
Supporting protocol for ModbusYes
Number of HW-interfaces other0
With optical interfaceNo
4-quadrant operation possibleNo
Integrated breaking resistanceNo
With PC connectionYes
Type of converterU converter
Degree of protection (IP)IP20
Degree of protection (NEMA)Other
Height184mm
Depth124mm
Width81mm
Supporting protocol for Data-HighwayNo
Supporting protocol for DeviceNetNo
Supporting protocol for SUCONETNo
Supporting protocol for LONNo
Supporting protocol for PROFINET IONo
Supporting protocol for PROFINET CBANo
Supporting protocol for SERCOSNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for BACnetNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFIsafeNo
Number of HW-interfaces industrial Ethernet0
Supporting protocol for other bus systemsYes
Number of interfaces PROFINET0
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4220
Number of HW-interfaces serial TTY0
Supporting protocol for INTERBUS-SafetyNo
Number of HW-interfaces USB0
Number of HW-interfaces parallel0
Number of HW-interfaces RS-4851
