Details
- •Low-voltage industrial components

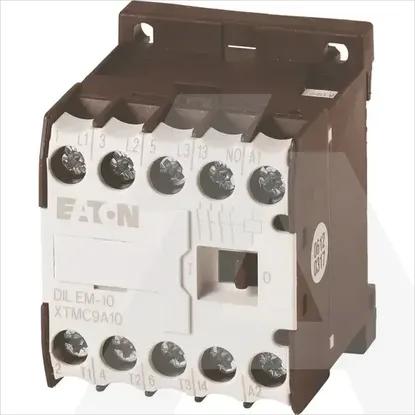

- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Height58mm
Modular versionNo
Rated operation power at AC-3, 400 V4kW
Width45mm
Depth54mm
Rated operation current Ie at AC-3, 400 V9A
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Number of auxiliary contacts as normally closed contact0
Rated control supply voltage Us at AC 60HZ0 - 0V
Number of auxiliary contacts as normally open contact1
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated operation current Ie at AC-1, 400 V22A
Rated operation power NEMA3.7kW
Rated operation current Ie at AC-4, 400 V6.6A
Type of electrical connection of main circuitScrew connection
Operating voltage at AC 50 Hz24 - 690V
Voltage type for actuatingDC
Operating voltage at AC 60 Hz24 - 690V
Rated operation power at AC-4, 400 V3kW
Rated control supply voltage Us at DC48 - 48V
