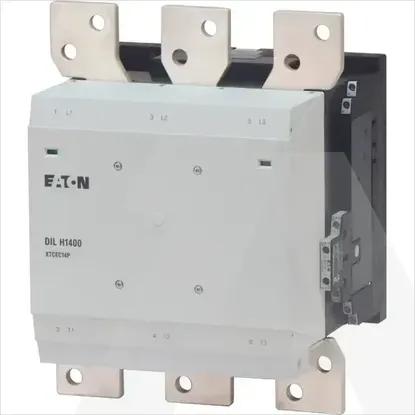

DILH1400/22(RAW250)
Code: 1745831
ManufacturerEaton
Catalog number272441
TypeDILH1400/22(RAW250)
CategoryPower contactor, AC switching
EAN code4015082724412
Details
- •Contactor, Ie=1400A, AC/DC operated
- •Low-voltage industrial components
- •Power contactor, AC switching
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-1, 400 V1714A
Type of electrical connection of main circuitRail connection
Depth232mm
Modular versionNo
Number of normally open contacts as main contact3
Operating voltage at AC 50 Hz230 - 250V
Height342mm
Width260mm
Operating voltage at AC 60 Hz230 - 250V
Rated operation power at AC-4, 400 V0kW
Voltage type for actuatingAC/DC
Rated operation power NEMA0kW
Rated control supply voltage Us at DC230 - 250V
Rated control supply voltage Us at AC 60HZ230 - 250V
Rated operation current Ie at AC-4, 400 V0A
Rated operation power at AC-3, 400 V0kW
Number of auxiliary contacts as normally open contact2
Number of auxiliary contacts as normally closed contact2
Rated operation current Ie at AC-3, 400 V0A
Rated control supply voltage Us at AC 50HZ230 - 250V
