Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Number of normally closed contacts as main contact0
Modular versionNo
Width140mm
Rated operation current Ie at AC-3, 400 V300A
Height189mm
Rated control supply voltage Us at AC 50HZ48 - 110V
Number of auxiliary contacts as normally open contact2
Rated operation power at AC-3, 400 V160kW
Number of auxiliary contacts as normally closed contact2
Rated control supply voltage Us at DC48 - 110V
Rated operation current Ie at AC-1, 400 V490A
Number of normally open contacts as main contact3
Rated control supply voltage Us at AC 60HZ48 - 110V
Depth208mm
Type of electrical connection of main circuitRail connection
Operating voltage at AC 50 Hz48 - 110V
Rated operation power at AC-4, 400 V132kW
Voltage type for actuatingAC/DC
Rated operation current Ie at AC-4, 400 V240A
Operating voltage at AC 60 Hz48 - 110V
Rated operation power NEMA186kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

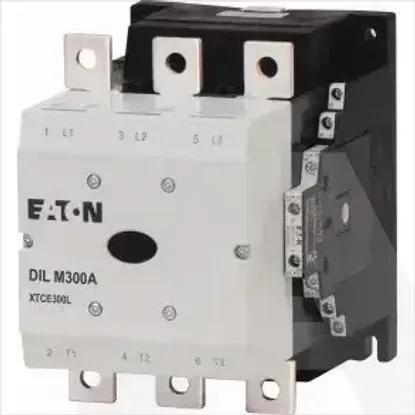

DILM300A/22(RA110)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Number of normally closed contacts as main contact
0
Modular version
Width
140mm
Rated operation current Ie at AC-3, 400 V
300A
Height
189mm
Rated control supply voltage Us at AC 50HZ
48 .. 110V
Number of auxiliary contacts as normally open contact
2
Rated operation power at AC-3, 400 V
160kW
Number of auxiliary contacts as normally closed contact
2
Rated control supply voltage Us at DC
48 .. 110V
Rated operation current Ie at AC-1, 400 V
490A
Number of normally open contacts as main contact
3
Rated control supply voltage Us at AC 60HZ
48 .. 110V
Depth
208mm
Type of electrical connection of main circuit
Rail connection
Operating voltage at AC 50 Hz
48 .. 110V
Rated operation power at AC-4, 400 V
132kW
Voltage type for actuating
AC/DC
Rated operation current Ie at AC-4, 400 V
240A
Operating voltage at AC 60 Hz
48 .. 110V
Rated operation power NEMA
186kW
