Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V0kW
Number of auxiliary contacts as normally closed contact0
Number of poles3
Depth168mm
Rated permanent current Iu160A
Height70mm
Number of auxiliary contacts as normally open contact0
Rated operating voltage690 - 690V
Width131mm
Degree of protection (IP), front sideIP20
Type of electrical connection of main circuitScrew connection
Type of control elementOther
Conditioned rated short-circuit current Iq100kA
Motor drive integratedNo
Version as main switchYes
Version as emergency stop installationYes
Number of auxiliary contacts as change-over contact0
InterlockableNo
Version as safety switchNo
Number of switches1
Rated operation power at AC-23, 400 V90kW
Rated short-time withstand current lcw8kA
Version as maintenance-/service switchYes
Colour control elementOther
Voltage release optionalNo
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Switching power at 400 V90kW
Suitable for front mounting centreNo
Max. rated operation voltage Ue AC690V
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V160A
Motor drive optionalNo
Suitable for floor mountingYes
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V154A
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

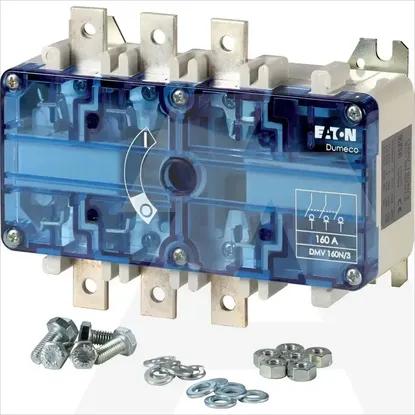

DMV-160N/3
