Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - digital I/O module
- •1 KOM
- •EATON
Technical specifications
Height156.8mm
Suitable for safety functionsNo
Input current at signal 14mA
Width60.8mm
Depth34mm
Number of digital inputs2
Time delay at signal exchange0.2 - 0.2ms
Number of digital outputs2
Voltage type of supply voltageDC
With optical interfaceNo
Supporting protocol for LONNo
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-4850
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-2320
Number of HW-interfaces parallel0
Number of HW-interfaces other0
Number of HW-interfaces serial TTY0
Number of HW-interfaces USB0
Supporting protocol for CANNo
Supporting protocol for TCP/IPNo
Supporting protocol for PROFIBUSNo
Supporting protocol for ASINo
Type of voltage (input voltage)DC
Supporting protocol for KNXNo
Supporting protocol for Data-HighwayNo
Supporting protocol for DeviceNetNo
Type of digital outputOther
Supporting protocol for ModbusNo
Output current0.5A
Short-circuit protection, outputs availableYes
Supporting protocol for INTERBUSNo
Supporting protocol for SUCONETNo
Supporting protocol for other bus systemsYes
Fieldbus connection over separate bus coupler possibleYes
Explosion safety category for dustNone
Type of electric connectionScrew connection
Explosion safety category for gasNone
Appendant operation agent (Ex ia)No
Degree of protection (IP)IP69K
Number of HW-interfaces Wireless0
Front built-in possibleNo
Supporting protocol for INTERBUS-SafetyNo
System accessoryYes
Supporting protocol for SERCOSNo
Rack-assembly possibleNo
Appendant operation agent (Ex ib)No
Rail mounting possibleNo
Number of interfaces PROFINET0
Wall mounting/direct mountingYes
Radio standard BluetoothNo
Supporting protocol for PROFINET CBANo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for AS-Interface Safety at WorkNo
Radio standard Wi-Fi 802.11No
Supporting protocol for EtherNet/IPNo
IO link masterNo
Performance level according to EN ISO 13849-1None
Permitted voltage at output20.4 - 28.8V
Supporting protocol for PROFINET IONo
Supporting protocol for PROFIsafeNo
Supply voltage DC20.4 - 28.8V
Supply voltage AC 50 Hz0 - 0V
Type of output voltageDC
Radio standard GPRSNo
Digital inputs configurableNo
SIL according to IEC 61508None
Supporting protocol for SafetyBUS pNo
Radio standard GSMNo
Radio standard UMTSNo
Permitted voltage at input20.4 - 28.8V
Digital outputs configurableNo
Supply voltage AC 60 Hz0 - 0V
Certified for UL hazardous location class IIINo
Certified for UL hazardous location class INo
Certified for UL hazardous location division 2No
Supporting protocol for EtherCATNo
Certified for UL hazardous location division 1No
Certified for UL hazardous location group A (acetylene)No
Certified for UL hazardous location class IINo
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location group G (non-conductive dusts)No
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

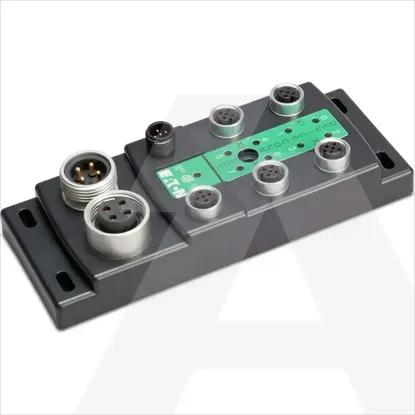

EU6E-SWD-2D2D-1
