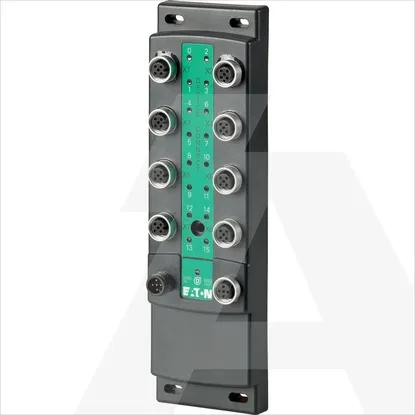

EU8E-SWD-16DX

Name: EU8E-SWD-16DX
Brand: EATON
Price: 1227.5 EUR
Availability: BackOrder

Code: 1745935

ManufacturerEaton (Moeller)

Catalog number174744

TypeProgrammable logic controllers PLC

EAN code4015081712304

‌

‌
‌
‌
‌

‌

‌
‌

‌

Details

•Programmable logic controllers PLC
•Fieldbus, decentr. periphery - digital I/O module
•1 KOM
•EATON

Technical specifications

Supply voltage AC 50 Hz0 - 0V

Voltage type of supply voltageDC

Number of digital inputs16

Number of digital outputs0

Type of voltage (input voltage)DC

Type of digital outputOther

Digital inputs configurableNo

Permitted voltage at input20.4 - 28.8V

Supply voltage DC20.4 - 28.8V

Digital outputs configurableNo

Supply voltage AC 60 Hz0 - 0V

Output current0A

Short-circuit protection, outputs availableNo

Input current at signal 14mA

Type of output voltageDC

Number of interfaces PROFINET0

Number of HW-interfaces industrial Ethernet0

Number of HW-interfaces RS-2320

Number of HW-interfaces parallel0

Number of HW-interfaces RS-4850

Number of HW-interfaces other0

Number of HW-interfaces Wireless0

Number of HW-interfaces USB0

Supporting protocol for PROFIBUSNo

With optical interfaceNo

Supporting protocol for EtherCATNo

Permitted voltage at output20.4 - 28.8V

Supporting protocol for CANNo

Supporting protocol for INTERBUSNo

Supporting protocol for KNXNo

Number of HW-interfaces serial TTY0

Number of HW-interfaces RS-4220

Supporting protocol for SUCONETNo

Supporting protocol for Data-HighwayNo

Supporting protocol for ASINo

Supporting protocol for PROFINET IONo

Supporting protocol for ModbusNo

Supporting protocol for LONNo

Supporting protocol for DeviceNetNo

Supporting protocol for PROFINET CBANo

Supporting protocol for TCP/IPNo

Supporting protocol for EtherNet/IPNo

Supporting protocol for DeviceNet SafetyNo

Supporting protocol for Foundation FieldbusNo

Supporting protocol for INTERBUS-SafetyNo

Supporting protocol for AS-Interface Safety at WorkNo

Supporting protocol for other bus systemsYes

Supporting protocol for SafetyBUS pNo

Supporting protocol for PROFIsafeNo

Supporting protocol for SERCOSNo

Radio standard BluetoothNo

Radio standard Wi-Fi 802.11No

Radio standard GPRSNo

Radio standard GSMNo

IO link masterNo

Radio standard UMTSNo

System accessoryYes

Degree of protection (IP)IP69K

Type of electric connectionScrew connection

Fieldbus connection over separate bus coupler possibleYes

Rail mounting possibleNo

Time delay at signal exchange0.2 - 0.2ms

Wall mounting/direct mountingYes

Front built-in possibleNo

Rack-assembly possibleNo

Suitable for safety functionsNo

SIL according to IEC 61508None

Performance level according to EN ISO 13849-1None

Appendant operation agent (Ex ib)No

Appendant operation agent (Ex ia)No

Certified for UL hazardous location class INo

Explosion safety category for dustNone

Certified for UL hazardous location class IINo

Explosion safety category for gasNone

Certified for UL hazardous location class IIINo

Certified for UL hazardous location division 1No

Certified for UL hazardous location division 2No

Certified for UL hazardous location group A (acetylene)No

Certified for UL hazardous location group B (hydrogen)No

Certified for UL hazardous location group C (ethylene)No

Certified for UL hazardous location group D (propane)No

Certified for UL hazardous location group F (carbonaceous dusts)No

Certified for UL hazardous location group G (non-conductive dusts)No

Certified for UL hazardous location group E (metal dusts)No

Height212.6mm

Width61.6mm

Depth34mm
