Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - digital I/O module
- •1 KOM
- •EATON
Technical specifications
Input current at signal 10mA
Width61.6mm
Height212.6mm
Depth34mm
Suitable for safety functionsNo
Number of digital inputs0
Voltage type of supply voltageDC
Number of HW-interfaces RS-2320
Number of HW-interfaces industrial Ethernet0
Time delay at signal exchange0.2 - 0.2ms
Number of digital outputs16
Supporting protocol for LONNo
Number of HW-interfaces RS-4220
Type of voltage (input voltage)DC
Number of HW-interfaces serial TTY0
Number of HW-interfaces other0
Number of HW-interfaces RS-4850
Number of HW-interfaces parallel0
Number of HW-interfaces USB0
With optical interfaceNo
Supporting protocol for KNXNo
Supporting protocol for ASINo
Supporting protocol for DeviceNetNo
Supporting protocol for PROFIBUSNo
Supporting protocol for INTERBUSNo
Supporting protocol for Data-HighwayNo
Supporting protocol for TCP/IPNo
Supporting protocol for ModbusNo
Supporting protocol for SUCONETNo
Supporting protocol for CANNo
Output current0.5A
Supporting protocol for other bus systemsYes
Type of digital outputOther
Explosion safety category for gasNone
Type of electric connectionScrew connection
Short-circuit protection, outputs availableYes
Rail mounting possibleNo
Appendant operation agent (Ex ib)No
Degree of protection (IP)IP69K
Supporting protocol for SERCOSNo
Appendant operation agent (Ex ia)No
Supporting protocol for INTERBUS-SafetyNo
Number of HW-interfaces Wireless0
Explosion safety category for dustNone
System accessoryYes
Number of interfaces PROFINET0
Fieldbus connection over separate bus coupler possibleYes
Front built-in possibleNo
Wall mounting/direct mountingYes
Supporting protocol for AS-Interface Safety at WorkNo
Radio standard BluetoothNo
Performance level according to EN ISO 13849-1None
IO link masterNo
Radio standard Wi-Fi 802.11No
Rack-assembly possibleNo
Supporting protocol for EtherNet/IPNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET IONo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET CBANo
Digital inputs configurableNo
Supply voltage DC20.4 - 28.8V
Supply voltage AC 60 Hz0 - 0V
Permitted voltage at input20.4 - 28.8V
Type of output voltageDC
Supply voltage AC 50 Hz0 - 0V
Permitted voltage at output20.4 - 28.8V
Digital outputs configurableNo
Certified for UL hazardous location class IINo
Certified for UL hazardous location division 1No
Certified for UL hazardous location class INo
SIL according to IEC 61508None
Radio standard UMTSNo
Radio standard GSMNo
Certified for UL hazardous location class IIINo
Supporting protocol for EtherCATNo
Radio standard GPRSNo
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location division 2No
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location group A (acetylene)No
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

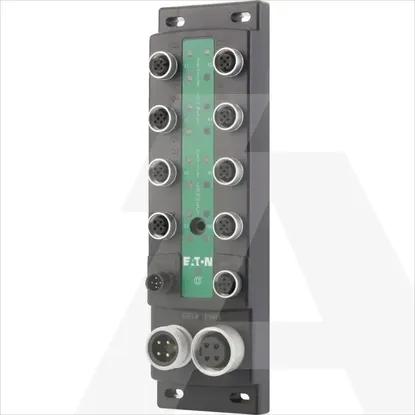

EU8E-SWD-16XD-1
