Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - digital I/O module
- •1 KOM
- •EATON
Technical specifications
Width61.6mm
Height212.6mm
Number of digital outputs4
Suitable for safety functionsNo
Voltage type of supply voltageDC
Input current at signal 10mA
Time delay at signal exchange0.2 - 0.2ms
Depth34mm
Number of digital inputs4
Supporting protocol for LONNo
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4850
Number of HW-interfaces USB0
Number of HW-interfaces parallel0
Number of HW-interfaces serial TTY0
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces other0
Type of voltage (input voltage)DC
Supporting protocol for ASINo
Supporting protocol for PROFIBUSNo
Supporting protocol for ModbusNo
Supporting protocol for TCP/IPNo
Supporting protocol for CANNo
Supporting protocol for KNXNo
Supporting protocol for INTERBUSNo
Supporting protocol for Data-HighwayNo
Type of electric connectionScrew connection
Supporting protocol for other bus systemsYes
Short-circuit protection, outputs availableYes
Supporting protocol for DeviceNetNo
Rail mounting possibleNo
Explosion safety category for gasNone
Supporting protocol for SUCONETNo
Type of digital outputOther
Explosion safety category for dustNone
Fieldbus connection over separate bus coupler possibleYes
Output current0.5A
Degree of protection (IP)IP69K
Appendant operation agent (Ex ia)No
Appendant operation agent (Ex ib)No
System accessoryYes
With optical interfaceNo
Front built-in possibleNo
Supporting protocol for SERCOSNo
Supporting protocol for INTERBUS-SafetyNo
Number of interfaces PROFINET0
Rack-assembly possibleNo
Wall mounting/direct mountingYes
Radio standard BluetoothNo
Radio standard Wi-Fi 802.11No
IO link masterNo
Supporting protocol for DeviceNet SafetyNo
Performance level according to EN ISO 13849-1None
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFINET CBANo
Supporting protocol for EtherNet/IPNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for SafetyBUS pNo
Supply voltage DC20.4 - 28.8V
Supporting protocol for PROFIsafeNo
Supply voltage AC 50 Hz0 - 0V
Permitted voltage at output20.4 - 28.8V
Supporting protocol for PROFINET IONo
Permitted voltage at input20.4 - 28.8V
Type of output voltageDC
Supply voltage AC 60 Hz0 - 0V
Number of HW-interfaces Wireless0
Radio standard GSMNo
Radio standard UMTSNo
Digital inputs configurableNo
Radio standard GPRSNo
Certified for UL hazardous location class IINo
Certified for UL hazardous location class INo
Supporting protocol for EtherCATNo
Certified for UL hazardous location division 2No
Certified for UL hazardous location class IIINo
Certified for UL hazardous location division 1No
SIL according to IEC 61508None
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location group A (acetylene)No
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location group G (non-conductive dusts)No
Digital outputs configurableNo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

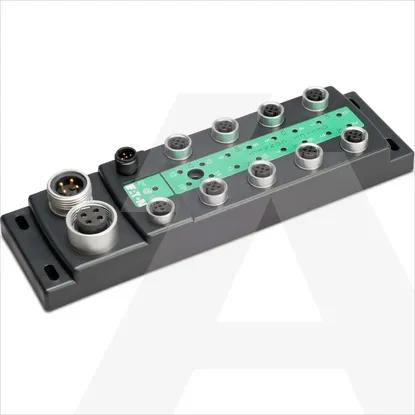

EU8E-SWD-4D4D-1
