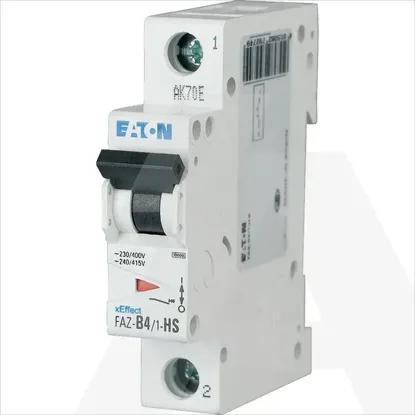

FAZ-B4/1-HS
Code: 1745942
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Built-in depth70.5mm
Number of protected poles1
Release characteristicB
Number of poles (total)1
Rated current4A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated insulation voltage Ui440V
Rated impulse withstand voltage Uimp4kV
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Current limiting class3
Concurrently switching neutral conductorNo
Pollution degree2
Flush-mounted installationNo
Additional equipment possibleYes
Degree of protection (IP)IP20
Rated voltage230V
Width in number of modular spacings1
Connectable conductor cross section multi-wired1 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Connectable conductor cross section solid-core1 - 25mm²
Ambient temperature during operating-25 - 75°C
Explosion-proofNo
Power loss1.5W
Frequency50 - 60Hz
Over voltage category3
